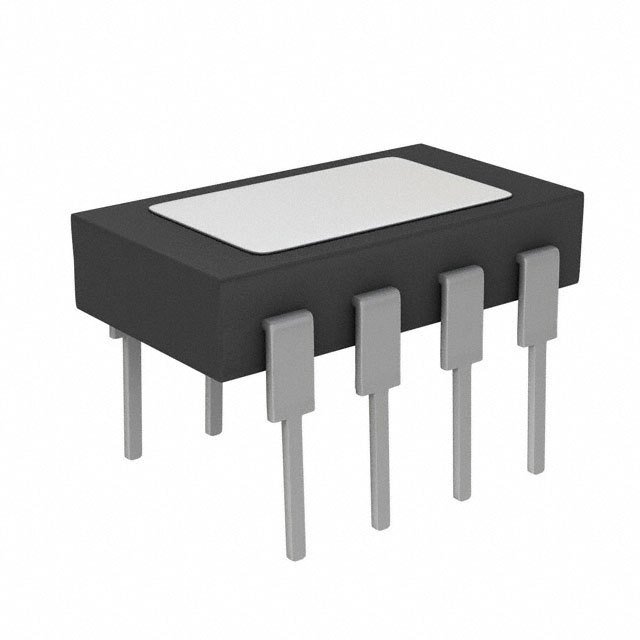

Image is for reference only , See Product Specifications
UC2710N
| Manufacturers: | Texas Instruments |
|---|---|
| Product Category: | PMIC - Gate Drivers |
| Data Sheet: | UC2710N |
| Description: | IC HIGH CURRENT FET DRIVER 8-DIP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | PMIC - Gate Drivers |
| Series | - |
| Gate Type | IGBT, N-Channel MOSFET |
| Packaging | Tube |
| Input Type | Inverting, Non-Inverting |
| Part Status | Active |
| Channel Type | Single |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Base Part Number | UC2710 |
| Voltage - Supply | 4.7V ~ 18V |
| Number of Drivers | 1 |
| Driven Configuration | Low-Side |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rise / Fall Time (Typ) | 85ns, 85ns |
| Supplier Device Package | 8-PDIP |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $9.52 | $9.33 | $9.14 |
Request Quote
