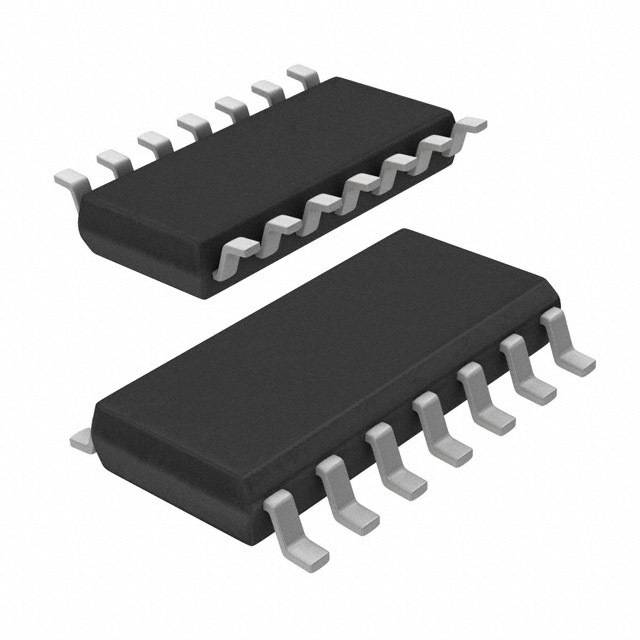

Image is for reference only , See Product Specifications
TPS40091PW
| Manufacturers: | Texas Instruments |
|---|---|
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Data Sheet: | TPS40091PW |
| Description: | IC REG CTRLR BUCK 24TSSOP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Series | - |
| Function | Step-Down |
| Topology | Buck |
| Packaging | Tube |
| Clock Sync | Yes |
| Output Type | PWM Signal |
| Part Status | Active |
| Output Phases | 4 |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Base Part Number | TPS40091 |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Duty Cycle (Max) | 87.5% |
| Number of Outputs | 4 |
| Serial Interfaces | - |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 1.2MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Synchronous Rectifier | No |
| Supplier Device Package | 24-TSSOP |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 15V |
In Stock 254 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.32 | $5.21 | $5.11 |
