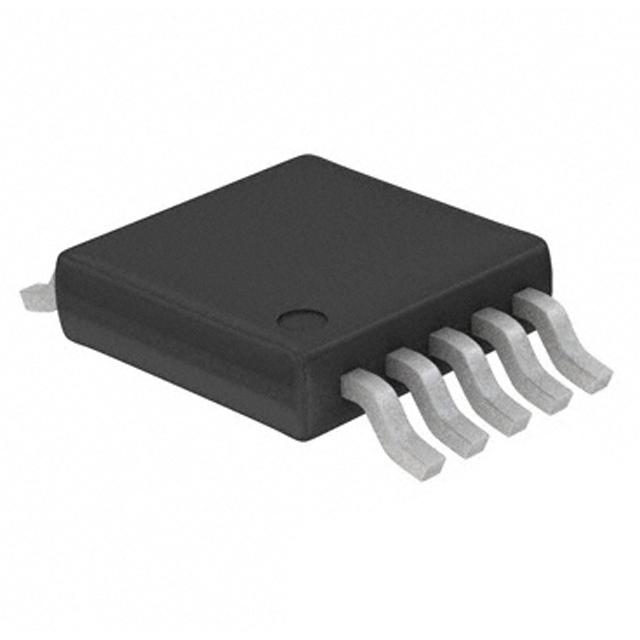

Image is for reference only , See Product Specifications
TPS2813PWR
| Manufacturers: | Texas Instruments |
|---|---|
| Product Category: | PMIC - Gate Drivers |
| Data Sheet: | TPS2813PWR |
| Description: | IC DUAL MOSFET DRIVER 8-TSSOP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | PMIC - Gate Drivers |
| Series | - |
| Gate Type | N-Channel, P-Channel MOSFET |
| Packaging | Digi-Reel® |
| Input Type | Inverting, Non-Inverting |
| Part Status | Active |
| Channel Type | Synchronous |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Base Part Number | TPS2813 |
| Voltage - Supply | 4V ~ 14V |
| Number of Drivers | 2 |
| Driven Configuration | Low-Side |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Rise / Fall Time (Typ) | 14ns, 15ns |
| Supplier Device Package | 8-TSSOP |
| Logic Voltage - VIL, VIH | 1V, 4V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
In Stock 2639 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
