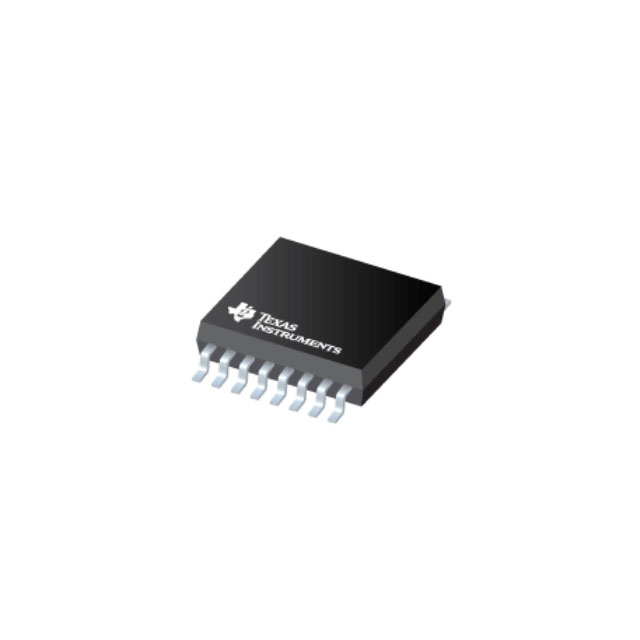

Image is for reference only , See Product Specifications
TMUX6104PWR
| Manufacturers: | Texas Instruments |
|---|---|
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Data Sheet: | TMUX6104PWR |
| Description: | IC SWITCH SINGLE 14TSSOP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - |
| Crosstalk | -105dB @ 1MHz |
| Packaging | Cut Tape (CT) |
| Part Status | Active |
| -3db Bandwidth | 500MHz |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Switch Circuit | - |
| Charge Injection | -0.41pC |
| Number of Circuits | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 14-TSSOP |
| On-State Resistance (Max) | 200Ohm |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 85ns, 53ns |
| Voltage - Supply, Single (V+) | 10V ~ 36V |
| Current - Leakage (IS(off)) (Max) | 20pA |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm |
| Channel Capacitance (CS(off), CD(off)) | 1.6pF, 3.8pF |
In Stock 1673 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.78 | $4.68 | $4.59 |
