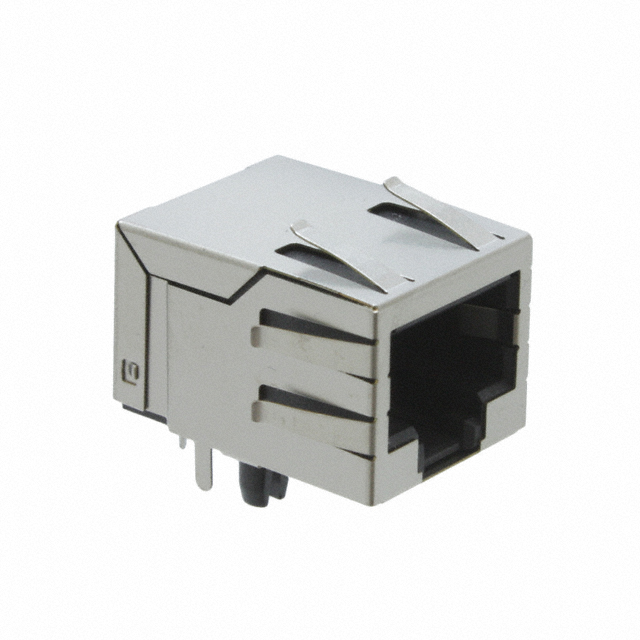

Image is for reference only , See Product Specifications
1840872-1
| Manufacturers: | TRP Connector B.V. |
|---|---|
| Product Category: | Modular Connectors - Jacks With Magnetics |
| Data Sheet: | 1840872-1 |
| Description: | CONN MAGJACK 1PORT 100 BASE-T |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TRP Connector B.V. |
| Product Category | Modular Connectors - Jacks With Magnetics |
| Series | MagJack® |
| Features | Board Guide, Decoupling Capacitance |
| LED Color | Does Not Contain LED |
| Packaging | Tray |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Part Status | Active |
| Termination | Solder |
| Applications | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Tab Direction | Up |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Shield Material | Brass |
| Contact Material | Phosphor Bronze |
| Height Above Board | 0.531" (13.49mm) |
| Dielectric Material | Thermoplastic |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Number of Cores per Jack | 4 |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.72 | $5.61 | $5.49 |
