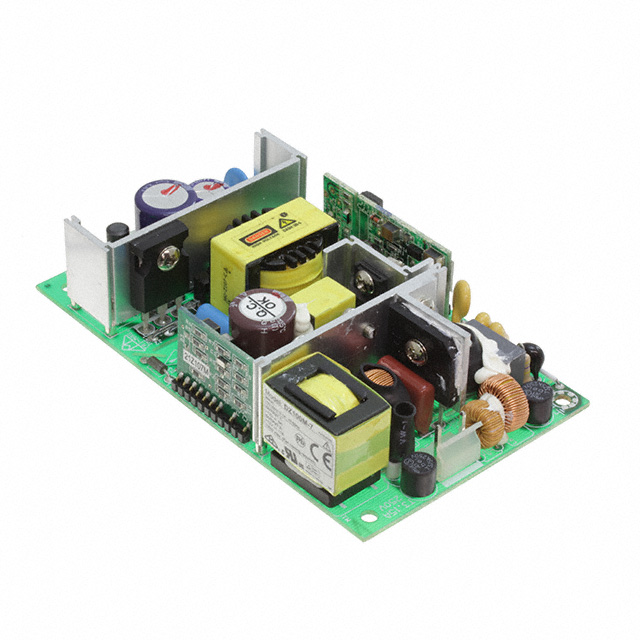

Image is for reference only , See Product Specifications
TMM 40112C
| Manufacturers: | TRACO Power |
|---|---|
| Product Category: | AC DC Converters |
| Data Sheet: | TMM 40112C |
| Description: | AC/DC CONVERTER 12V 40W |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TRACO Power |
| Product Category | AC DC Converters |
| Type | Enclosed |
| Series | TMM 40 (40W) |
| Features | Adjustable Output, Universal Input |
| Approvals | CB, CE, cULus, cURus |
| Efficiency | 84% |
| Part Status | Active |
| Applications | Industrial, ITE (Commercial), Medical |
| Mounting Type | Chassis Mount |
| Power (Watts) | 40W |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Size / Dimension | 4.41" L x 2.51" W x 1.34" H (112.0mm x 63.8mm x 34.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Isolation | 4kV |
| Minimum Load Required | No |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Current - Output (Max) | 3.33A |
In Stock 8 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $86.50 | $84.77 | $83.07 |
