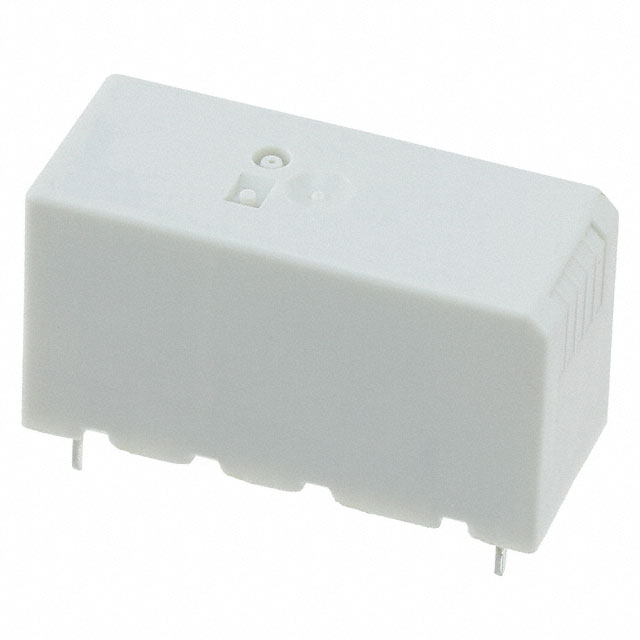

Image is for reference only , See Product Specifications
V23105A5477A201
| Manufacturers: | TE Connectivity Potter & Brumfield Relays |
|---|---|
| Product Category: | Power Relays, Over 2 Amps |
| Data Sheet: | V23105A5477A201 |
| Description: | RELAY TELECOM DPDT 3A 24V |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Product Category | Power Relays, Over 2 Amps |
| Series | V23105, AXICOM |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | Telecom |
| Part Status | Active |
| Seal Rating | - |
| Coil Current | 23.0mA |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 6ms |
| Release Time | 4ms |
| Mounting Type | Through Hole |
| Coil Insulation | - |
| Coil Resistance | 1.05 kOhms |
| Contact Material | Silver Nickel (AgNi) |
| Switching Voltage | 250VAC, 220VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 3A |
In Stock 407 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.88 | $2.82 | $2.77 |
