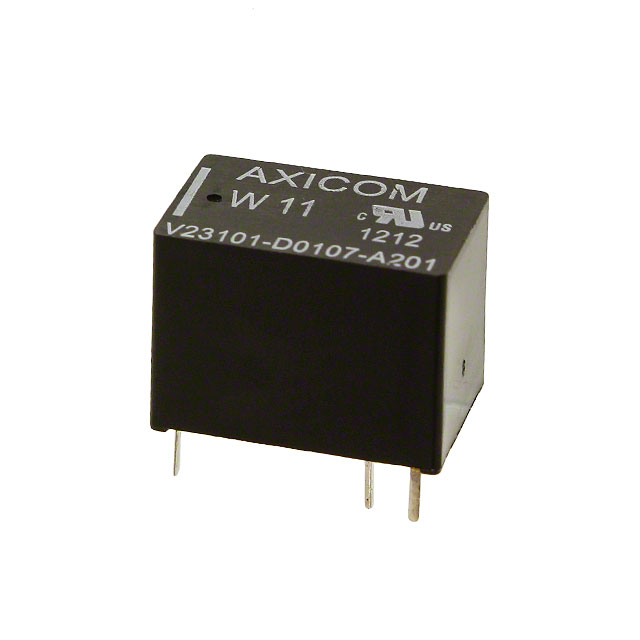

Image is for reference only , See Product Specifications
D3026
| Manufacturers: | TE Connectivity Potter & Brumfield Relays |
|---|---|
| Product Category: | Signal Relays, Up to 2 Amps |
| Data Sheet: | D3026 |
| Description: | RELAY TELECOM DPDT 2A 12VDC |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Product Category | Signal Relays, Up to 2 Amps |
| Series | FP2, AXICOM |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | Telecom |
| Part Status | Active |
| Seal Rating | - |
| Coil Current | 6.7mA |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 4ms |
| Release Time | 3ms |
| Mounting Type | Through Hole |
| Coil Insulation | - |
| Coil Resistance | 1.8 kOhms |
| Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| Switching Voltage | 250VAC, 220VDC - Max |
| Termination Style | PC Pin |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 2A |
In Stock 1528 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $6.48 | $6.35 | $6.22 |
