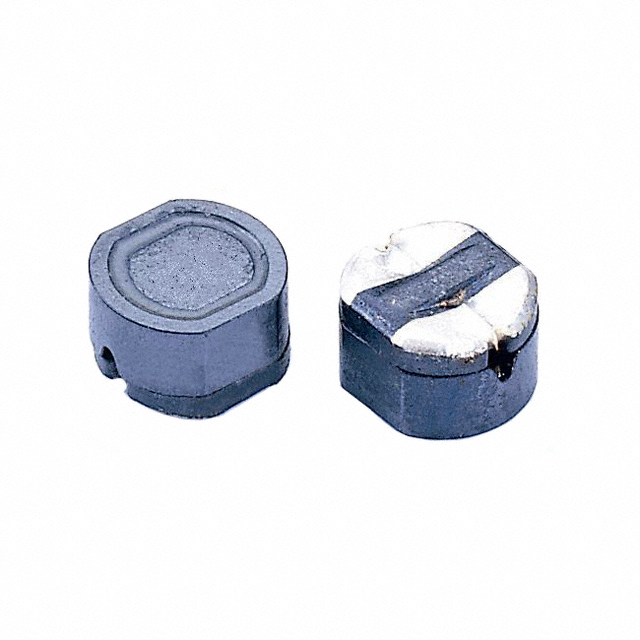

Image is for reference only , See Product Specifications
3631B221LL
| Manufacturers: | TE Connectivity Passive Product |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | 3631B221LL |
| Description: | FIXED IND 220UH 700MA 460 MOHM |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity Passive Product |
| Product Category | Fixed Inductors |
| Type | - |
| Series | 3631, Sigma Inductors |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±15% |
| Inductance | 220µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| DC Resistance (DCR) | 460mOhm Max |
| Current - Saturation | - |
| Current Rating (Amps) | 700mA |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Operating Temperature | -25°C ~ 105°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 1kHz |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.64 | $0.63 | $0.61 |
