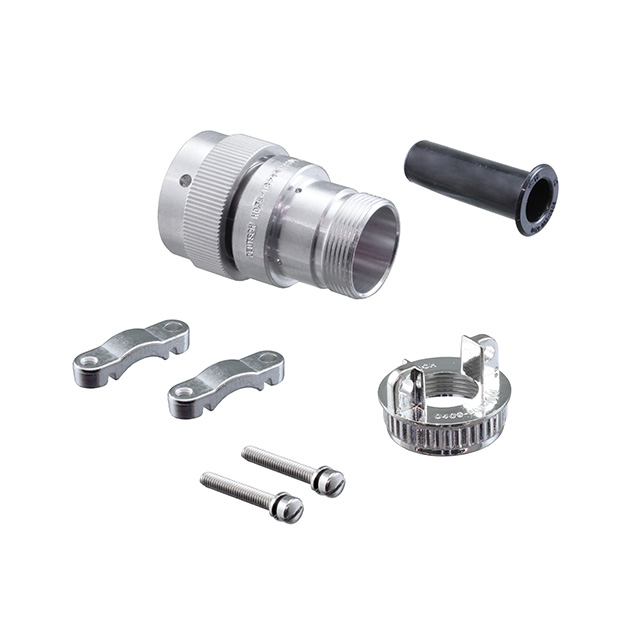

Image is for reference only , See Product Specifications
HD36-24-23SN-059
| Manufacturers: | TE Connectivity DEUTSCH Connectors |
|---|---|
| Product Category: | Circular Connectors - Housings |
| Data Sheet: | HD36-24-23SN-059 |
| Description: | CONN PLUG HSG FMALE 23POS INLINE |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity DEUTSCH Connectors |
| Product Category | Circular Connectors - Housings |
| Note | Contacts Not Included |
| Type | For Female Sockets |
| Series | HD30 |
| Features | Backshell, Cable Clamp |
| Includes | - |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Contact Size | 16 |
| Contact Type | Crimp |
| Shell Finish | - |
| Contact Shape | Circular |
| Housing Color | Silver |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug Housing |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Insert Material | Polyetherimide (PEI) |
| Shell Size, MIL | - |
| Mounting Feature | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 23 |
| Shell Size - Insert | 24-23 |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
In Stock 123 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $43.20 | $42.34 | $41.49 |
