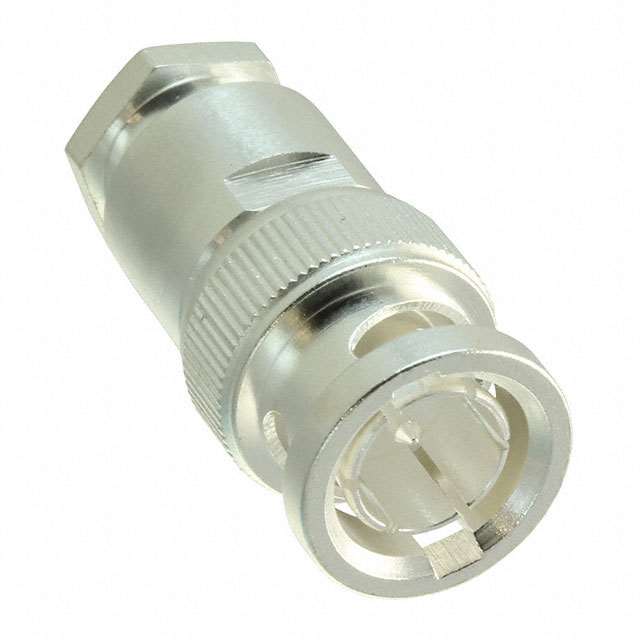

Image is for reference only , See Product Specifications
5413589-9
| Manufacturers: | TE Connectivity AMP Connectors |
|---|---|
| Product Category: | Coaxial Connectors (RF) |
| Data Sheet: | 5413589-9 |
| Description: | CONN BNC PLUG STR 75 OHM CRIMP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Product Category | Coaxial Connectors (RF) |
| Series | - |
| Features | - |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75Ohm |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | RG-59, Belden 9240, 9259, 9266 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Bayonet Lock |
| Insertion Loss | 0.15dB |
| Voltage Rating | 500V |
| Connector Style | BNC |
| Frequency - Max | 2GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Crimp |
| Contact Termination | Crimp |
| Dielectric Material | Polyethylene (PE) |
| Operating Temperature | -55°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
In Stock 391 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $6.55 | $6.42 | $6.29 |
