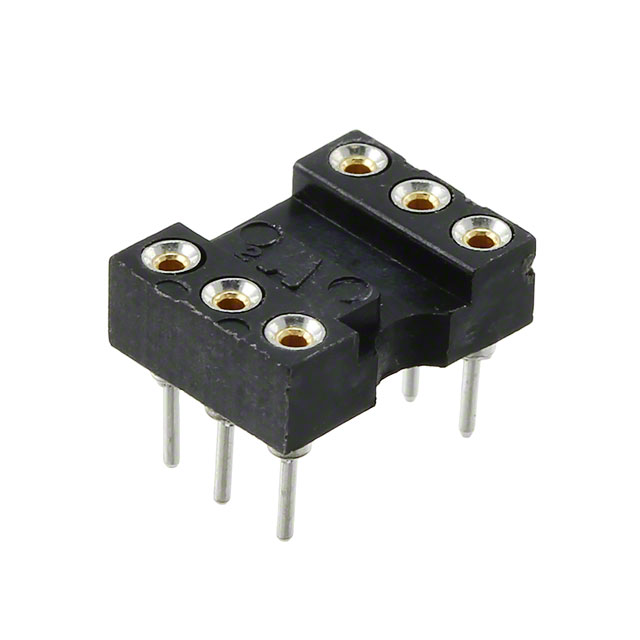

Image is for reference only , See Product Specifications
506-AG11D-ES
| Manufacturers: | TE Connectivity AMP Connectors |
|---|---|
| Product Category: | Sockets for ICs, Transistors |
| Data Sheet: | 506-AG11D-ES |
| Description: | CONN IC DIP SOCKET 6POS GOLD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Product Category | Sockets for ICs, Transistors |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Series | 500 |
| Features | Closed Frame |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Resistance | 10mOhm |
| Dielectric Material | Polyester |
| Contact Finish - Post | Tin-Lead |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Copper Alloy |
| Termination Post Length | 0.125" (3.18mm) |
| Contact Material - Mating | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 25.0µin (0.63µm) |
| Number of Positions or Pins (Grid) | 6 (2 x 3) |
In Stock 1600 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.13 | $2.09 | $2.05 |
