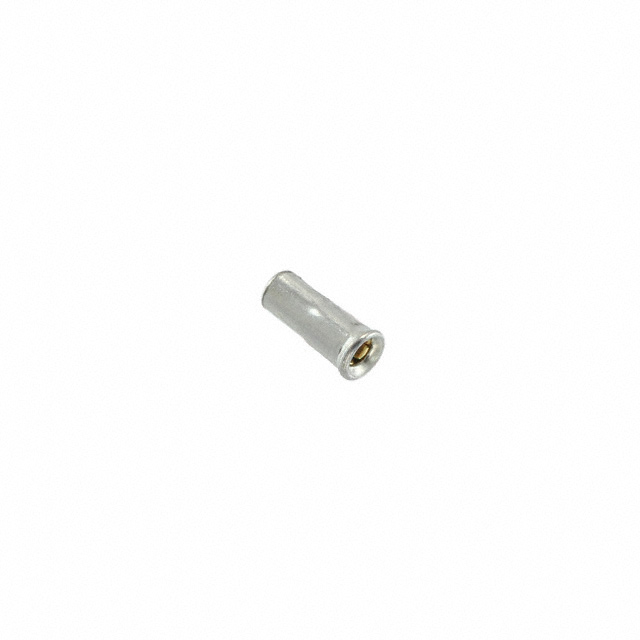

Image is for reference only , See Product Specifications
322-HCS5P2-320
| Manufacturers: | TE Connectivity AMP Connectors |
|---|---|
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors |
| Data Sheet: | 322-HCS5P2-320 |
| Description: | CONN PIN RCPT .016-.021 SOLDER |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Product Category | Terminals - PC Pin Receptacles, Socket Connectors |
| Series | HOLTITE |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Tail Type | No Tail |
| Part Status | Active |
| Termination | Solder |
| Socket Depth | - |
| Tail Diameter | - |
| Contact Finish | Gold |
| Board Thickness | 0.030" (0.76mm) |
| Flange Diameter | - |
| Insertion Force | 0.89N |
| Contact Material | Beryllium Copper |
| Length - Overall | 0.100" (2.54mm) |
| Pin Hole Diameter | - |
| Accepts Pin Diameter | 0.016" ~ 0.021" (0.41mm ~ 0.53mm) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.044" (1.12mm) |
| Accepts Square Pin Size | 0.011" x 0.018" (0.28mm x 0.46mm) |
| Contact Finish Thickness | 24.8µin (0.63µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.38 | $0.37 | $0.36 |
