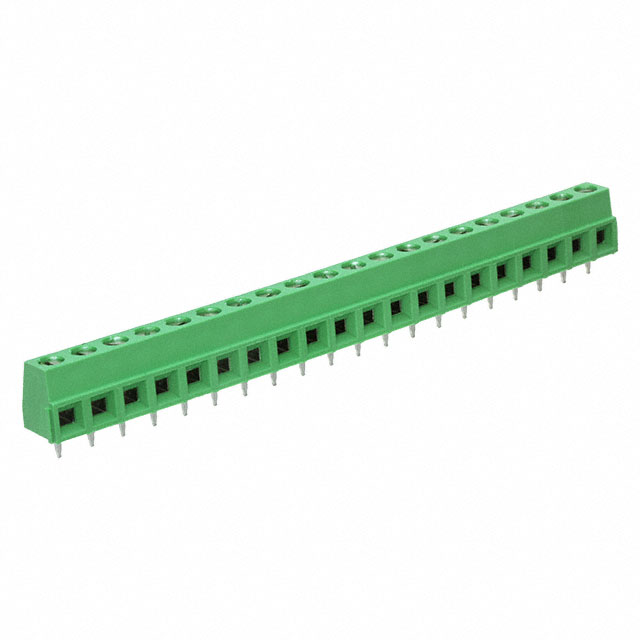

Image is for reference only , See Product Specifications
1-282837-8
| Manufacturers: | TE Connectivity AMP Connectors |
|---|---|
| Product Category: | Terminal Blocks - Wire to Board |
| Data Sheet: | 1-282837-8 |
| Description: | TERM BLK 18P SIDE ENT 5.08MM PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Product Category | Terminal Blocks - Wire to Board |
| Color | Green |
| Pitch | 0.200" (5.08mm) |
| Series | Buchanan |
| Current | 13.5A |
| Voltage | 300V |
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Wire Gauge | 16-28 AWG |
| Part Status | Active |
| Screw Thread | M3 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.68 Nm (6 Lb-In) |
| Number of Levels | 1 |
| Wire Termination | Screw - Rising Cage Clamp |
| Mating Orientation | Horizontal with Board |
| Dielectric Material | Polyamide (PA66), Nylon 6/6 |
| Positions Per Level | 18 |
| Operating Temperature | - |
| Clamp Material - Plating | Brass - Nickel Plated |
| Screw Material - Plating | Brass - Nickel Plated |
| Contact Material - Plating | Brass - Tin Plated |
In Stock 165 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $8.54 | $8.37 | $8.20 |
