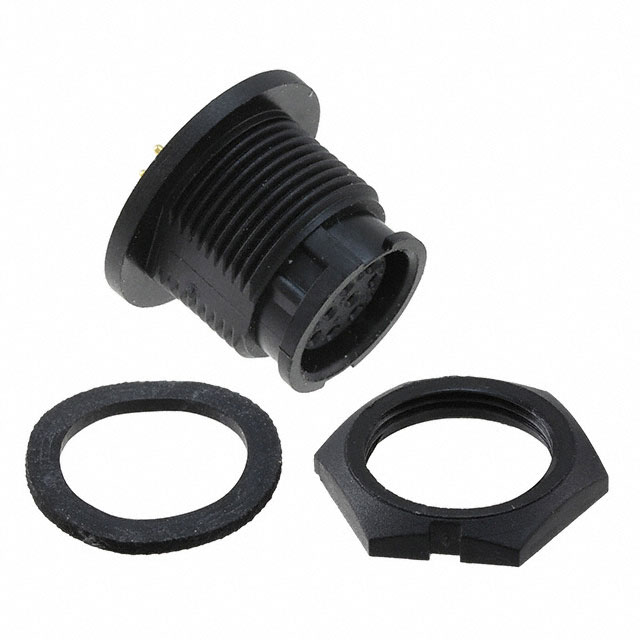

Image is for reference only , See Product Specifications
TA7FSH
| Manufacturers: | Switchcraft Inc. |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | TA7FSH |
| Description: | CONN PLUG FMALE MINI XLR 7P SLDR |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Switchcraft Inc. |
| Product Category | Circular Connectors |
| Color | Silver |
| Series | Tini Q-G® TA |
| Features | Backshell, Cable Clamp, Ground |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Solder |
| Applications | Audio, Medical |
| Shell Finish | Nickel |
| Cable Opening | 0.290" (7.37mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Latch Lock |
| Shell Material | Copper Alloy |
| Voltage Rating | 125VAC |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Ingress Protection | - |
| Number of Positions | 7 |
| Shell Size - Insert | Mini XLR |
| Current Rating (Amps) | 1.5A |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Copper Alloy, Nickel |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
In Stock 74 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $12.78 | $12.52 | $12.27 |
