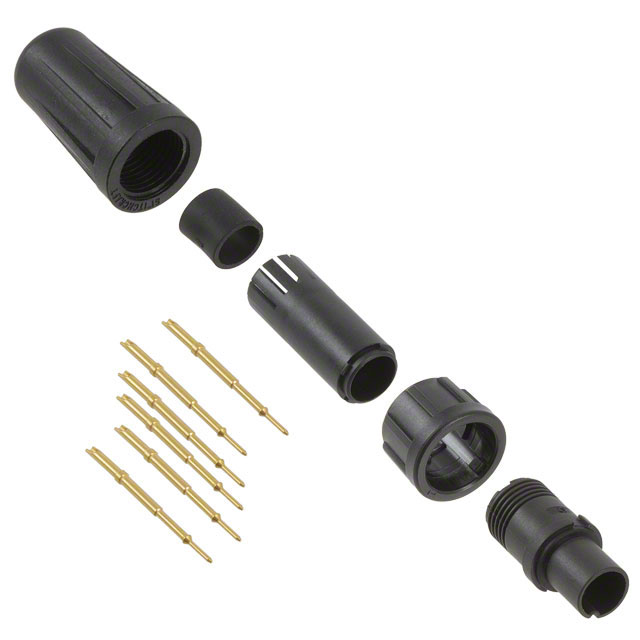

Image is for reference only , See Product Specifications
EN2C5M26DCW
| Manufacturers: | Switchcraft Inc. |
|---|---|
| Product Category: | Circular Connectors |
| Data Sheet: | EN2C5M26DCW |
| Description: | CONN PLUG MALE 5POS GOLD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Switchcraft Inc. |
| Product Category | Circular Connectors |
| Color | Black |
| Series | EN2™ |
| Features | Backshell, Coupling Nut, Winged |
| Packaging | Bulk |
| Shielding | Unshielded |
| Orientation | Keyed |
| Part Status | Active |
| Termination | Crimp or Solder Cup |
| Applications | Communication Systems, Industrial, Marine, Medical |
| Shell Finish | - |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic |
| Voltage Rating | 125VAC/DC |
| Insert Material | Elastomer |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Ingress Protection | IP66/67/68 - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | - |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
In Stock 11 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.03 | $6.89 | $6.75 |
Request Quote
