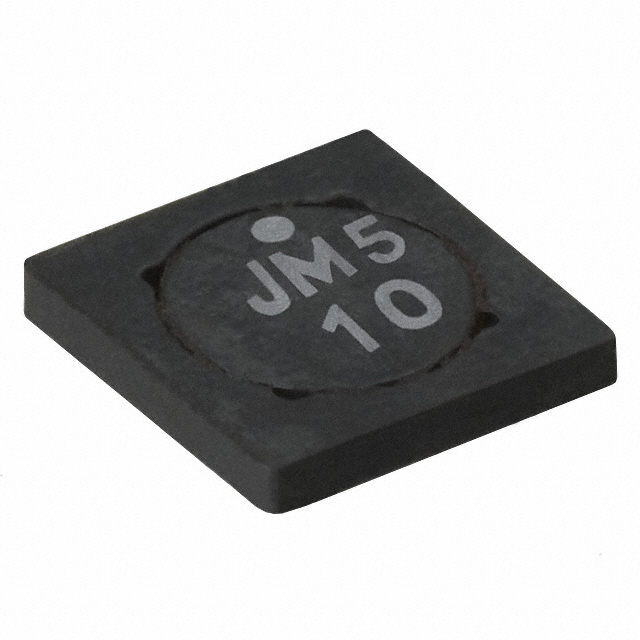

Image is for reference only , See Product Specifications
CEP125NP-6R0MC
| Manufacturers: | Sumida America Components Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | CEP125NP-6R0MC |
| Description: | FIXED IND 6UH 9.9A 8 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Sumida America Components Inc. |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | CEP125 |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 6µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| DC Resistance (DCR) | 8mOhm Max |
| Current - Saturation | 6.7A |
| Current Rating (Amps) | 9.9A |
| Height - Seated (Max) | 0.220" (5.60mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100kHz |
