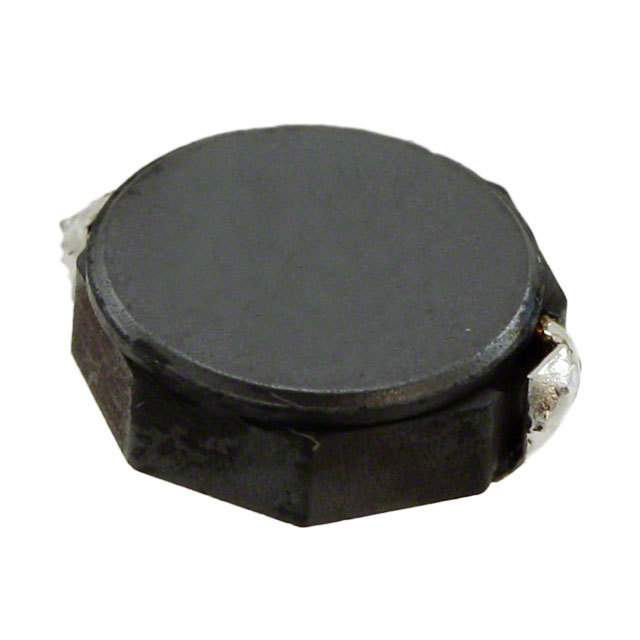

Image is for reference only , See Product Specifications
CDRH8D28HPNP-3R3NC
| Manufacturers: | Sumida America Components Inc. |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | CDRH8D28HPNP-3R3NC |
| Description: | FIXED IND 3.3UH 3.8A 35 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Sumida America Components Inc. |
| Product Category | Fixed Inductors |
| Type | - |
| Series | CDRH8D28/HP |
| Ratings | - |
| Q @ Freq | - |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 3.3µH |
| Part Status | Discontinued at Digi-Key |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| DC Resistance (DCR) | 35mOhm Max |
| Current - Saturation | 6.5A |
| Current Rating (Amps) | 3.8A |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Operating Temperature | -40°C ~ 100°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100kHz |
