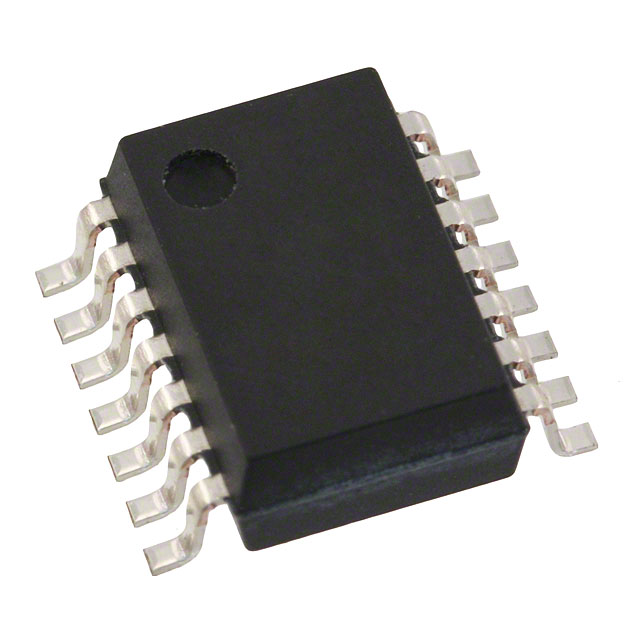

Image is for reference only , See Product Specifications
PC929PYJ000F
| Manufacturers: | Sharp Microelectronics |
|---|---|
| Product Category: | Isolators - Gate Drivers |
| Data Sheet: | PC929PYJ000F |
| Description: | OPTOISO 4KV 1CH GATE DRVR 14SMT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Product Category | Isolators - Gate Drivers |
| Series | OPIC™ |
| Approvals | UR, VDE |
| Packaging | Tape & Reel (TR) |
| Technology | Optical Coupling |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.256", 6.50mm Width) |
| Number of Channels | 1 |
| Voltage - Isolation | 4000Vrms |
| Current - Peak Output | 400mA |
| Operating Temperature | -25°C ~ 80°C |
| Rise / Fall Time (Typ) | 200ns, 200ns |
| Supplier Device Package | 14-SMT |
| Voltage - Output Supply | 15V ~ 30V |
| Current - Output High, Low | - |
| Pulse Width Distortion (Max) | - |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Common Mode Transient Immunity (Min) | 1.5kV/µs |
