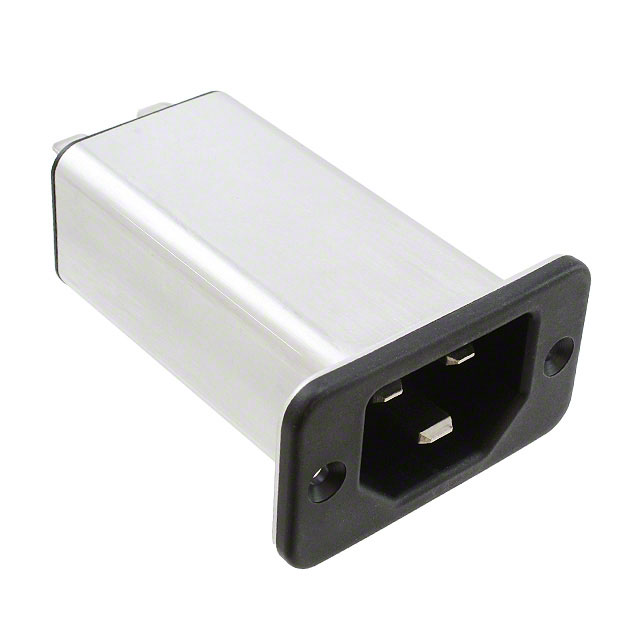

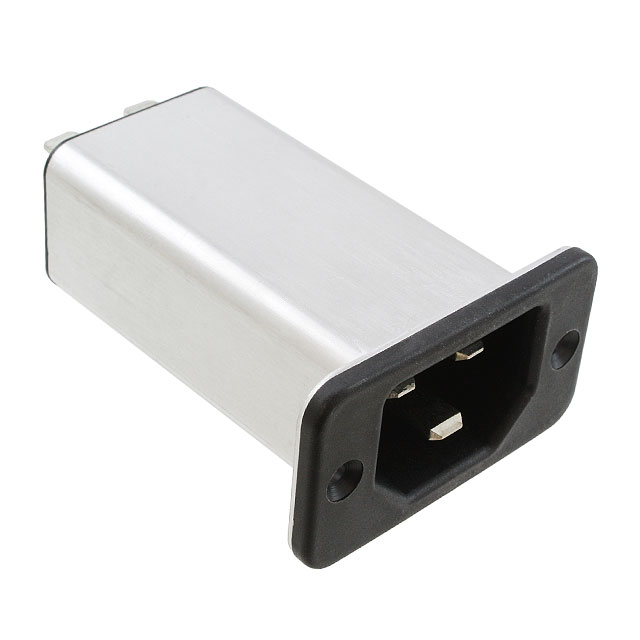

Image is for reference only , See Product Specifications
C22F.0102
| Manufacturers: | Schurter Inc. |
|---|---|
| Product Category: | Power Entry Connectors - Inlets, Outlets, Modules |
| Data Sheet: | C22F.0102 |
| Description: | PWR ENT RCPT IEC320-C22 PANEL QC |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Schurter Inc. |
| Product Category | Power Entry Connectors - Inlets, Outlets, Modules |
| Fuse | No |
| Series | C22F |
| Features | Shielded |
| Approvals | cULus, ENEC |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Part Status | Active |
| Termination | Quick Connect - 0.250" (6.3mm) |
| Current - UL | 20A |
| Voltage - UL | 250VAC |
| Current - IEC | 16A |
| Mounting Type | Panel Mount, Flange |
| Voltage - IEC | 250VAC |
| Connector Type | Receptacle, Male Blades |
| Connector Style | IEC 320-C22 |
| Panel Thickness | - |
| Switch Features | - |
| Ingress Protection | IP40 |
| Fuse Holder, Drawer | - |
| Number of Positions | 3 |
| Panel Cutout Dimensions | Rectangular - 26.80mm x 34.80mm |
| Material Flammability Rating | UL94 V-0 |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $41.27 | $40.44 | $39.64 |
