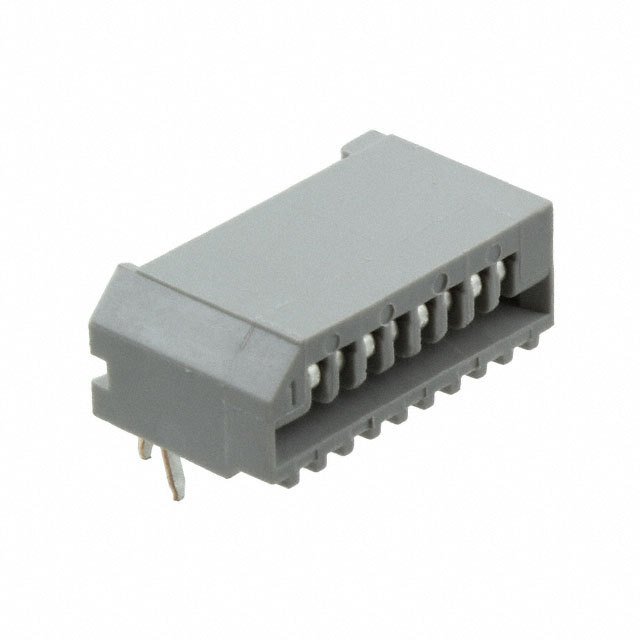

Image is for reference only , See Product Specifications
ZF1-15-01-T-WT
| Manufacturers: | Samtec, Inc. |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | ZF1-15-01-T-WT |
| Description: | ZERO INSERTION FORCE 1MM ASSY |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Samtec, Inc. |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.039" (1.00mm) |
| Series | ZF1 |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Housing Color | Natural |
| Mating Cycles | - |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FFC |
| Voltage Rating | - |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.118" (3.00mm) |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 15 |
| Current Rating (Amps) | 1.9A per Contact |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-2 |
In Stock 264 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.01 | $0.99 | $0.97 |
