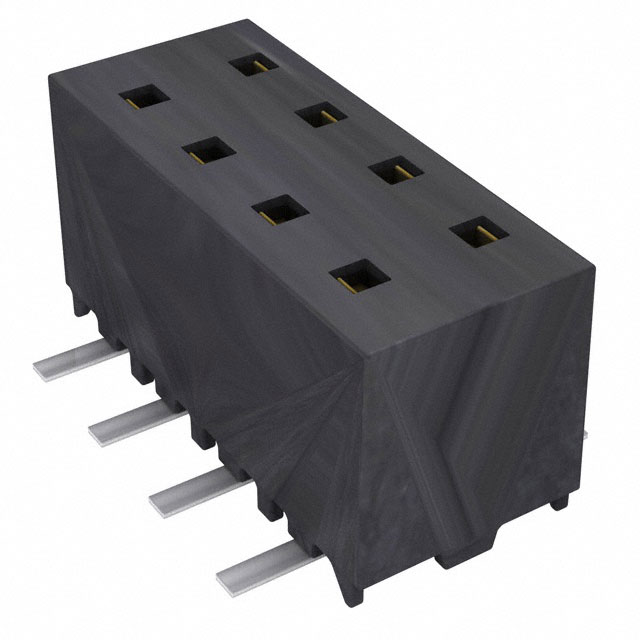

Image is for reference only , See Product Specifications
SLW-109-01-T-D
| Manufacturers: | Samtec, Inc. |
|---|---|
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Data Sheet: | SLW-109-01-T-D |
| Description: | CONN RCPT 18POS 0.1 TIN PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Samtec, Inc. |
| Product Category | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Style | Board to Board |
| Series | SLW |
| Features | - |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Forked |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.180" (4.57mm) |
| Ingress Protection | - |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.115" (2.92mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mated Stacking Heights | 6.09mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | - |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
In Stock 153 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.59 | $1.56 | $1.53 |
