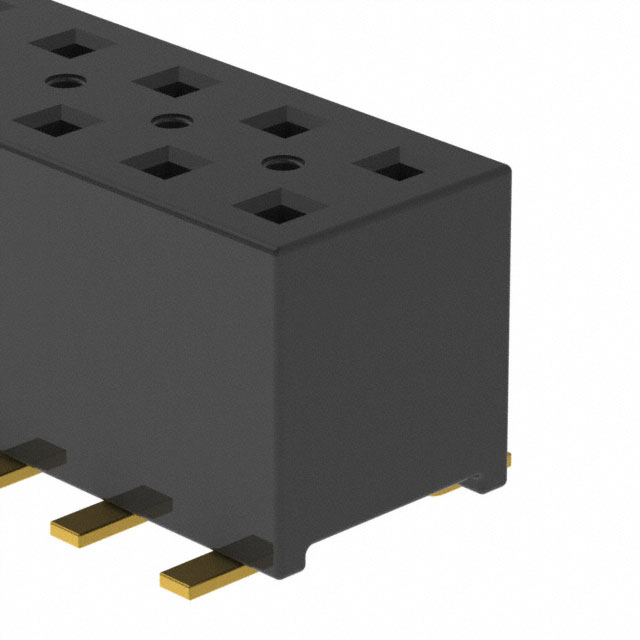

Image is for reference only , See Product Specifications
SFML-105-T1-S-D
| Manufacturers: | Samtec, Inc. |
|---|---|
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Data Sheet: | SFML-105-T1-S-D |
| Description: | CONN RCPT 10POS 0.05 GOLD PCB |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Samtec, Inc. |
| Product Category | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Style | Board to Board or Cable |
| Series | Tiger Eye™ SFML |
| Features | - |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 250VAC |
| Contact Material | - |
| Insulation Color | Black |
| Insulation Height | 0.180" (4.57mm) |
| Ingress Protection | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.120" (3.05mm) |
| Current Rating (Amps) | 3.2A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.94 | $1.90 | $1.86 |
