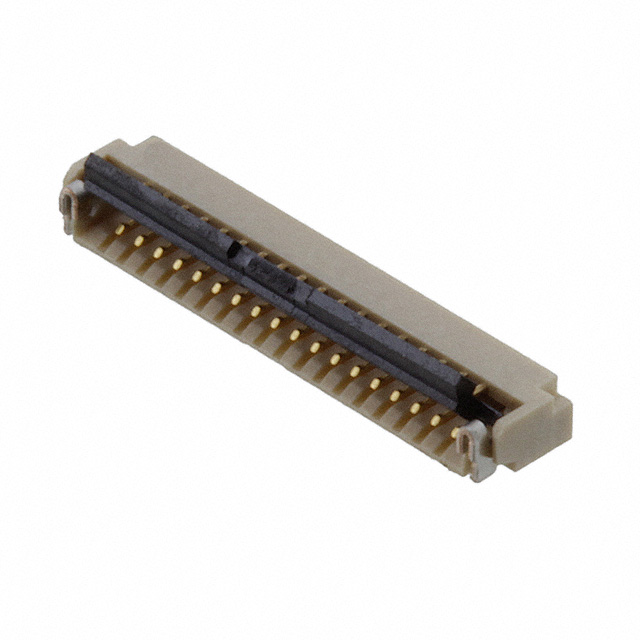

Image is for reference only , See Product Specifications
FC1-22-L2-T-TR
| Manufacturers: | Samtec, Inc. |
|---|---|
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Data Sheet: | FC1-22-L2-T-TR |
| Description: | 1MM SINGLE ROW CONNECTOR |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Samtec, Inc. |
| Product Category | FFC, FPC (Flat Flexible) Connectors |
| Pitch | 0.039" (1.00mm) |
| Series | FC1 |
| Features | Low Insertion Force (LIF), Solder Retention |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | Solder |
| Housing Color | Black |
| Mating Cycles | 25 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | - |
| Cable End Type | - |
| Contact Finish | Tin |
| Flat Flex Type | FFC |
| Voltage Rating | - |
| Locking Feature | - |
| Contact Material | Phosphor Bronze |
| Actuator Material | - |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | - |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 22 |
| Current Rating (Amps) | 2A per Contact |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.47 | $1.44 | $1.41 |
