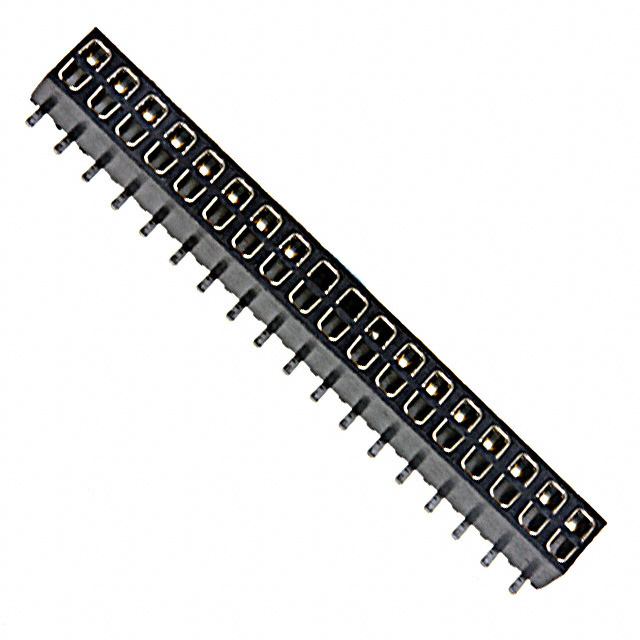

Image is for reference only , See Product Specifications
CLM-104-02-H-D-TR
| Manufacturers: | Samtec, Inc. |
|---|---|
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Data Sheet: | CLM-104-02-H-D-TR |
| Description: | CONN RCPT 8POS 0.039 GOLD SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Samtec, Inc. |
| Product Category | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Style | Board to Board |
| Series | CLM |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.084" (2.14mm) |
| Ingress Protection | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | - |
| Current Rating (Amps) | 2.8A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.63 | $2.58 | $2.53 |
