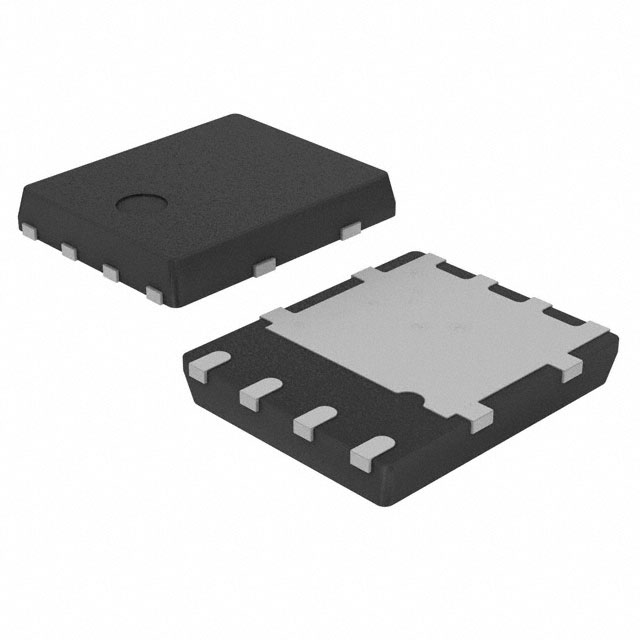

Image is for reference only , See Product Specifications
STV270N4F3
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | STV270N4F3 |
| Description: | MOSFET N-CH 40V 270A POWERSO-10 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | STripFET™ III |
| FET Type | N-Channel |
| Packaging | Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Base Part Number | STV270 |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.5mOhm @ 80A, 10V |
| Power Dissipation (Max) | 300W (Tc) |
| Supplier Device Package | 10-PowerSO |
| Gate Charge (Qg) (Max) @ Vgs | 150nC @ 10V |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 7500pF @ 25V |
| Current - Continuous Drain (Id) @ 25°C | 270A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
In Stock 575 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
