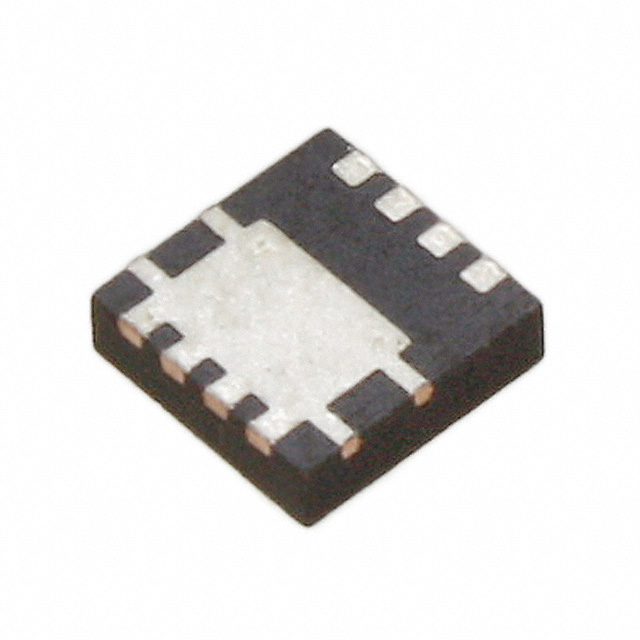

Image is for reference only , See Product Specifications
STL7LN80K5
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | STL7LN80K5 |
| Description: | MOSFET N-CH 800V 5A POWERFLAT |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | MDmesh™ |
| FET Type | N-Channel |
| Packaging | Digi-Reel® |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Base Part Number | STL7 |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 1.15Ohm @ 2.5A, 10V |
| Power Dissipation (Max) | 42W (Tc) |
| Supplier Device Package | PowerFlat™ (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V |
| Drain to Source Voltage (Vdss) | 800V |
| Input Capacitance (Ciss) (Max) @ Vds | 270pF @ 100V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
In Stock 3000 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
