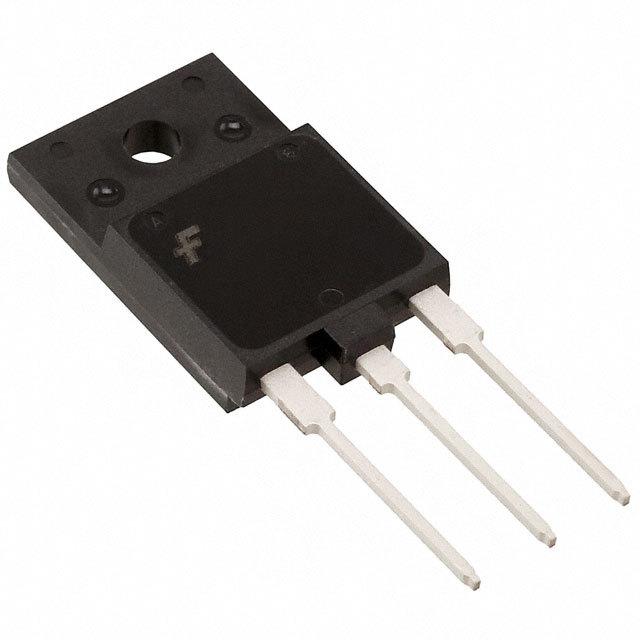

Image is for reference only , See Product Specifications
STGF30M65DF2
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | Transistors - IGBTs - Single |
| Data Sheet: | STGF30M65DF2 |
| Description: | IGBT TRENCH 650V 60A TO220FP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - IGBTs - Single |
| Series | M |
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Gate Charge | 80nC |
| Part Status | Active |
| Power - Max | 38W |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Base Part Number | STGF30 |
| Switching Energy | 300µJ (on), 960µJ (off) |
| Td (on/off) @ 25°C | 31.6ns/115ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Supplier Device Package | TO-220FP |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Reverse Recovery Time (trr) | 140ns |
| Current - Collector (Ic) (Max) | 60A |
| Current - Collector Pulsed (Icm) | 120A |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
In Stock 50 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.94 | $2.88 | $2.82 |
