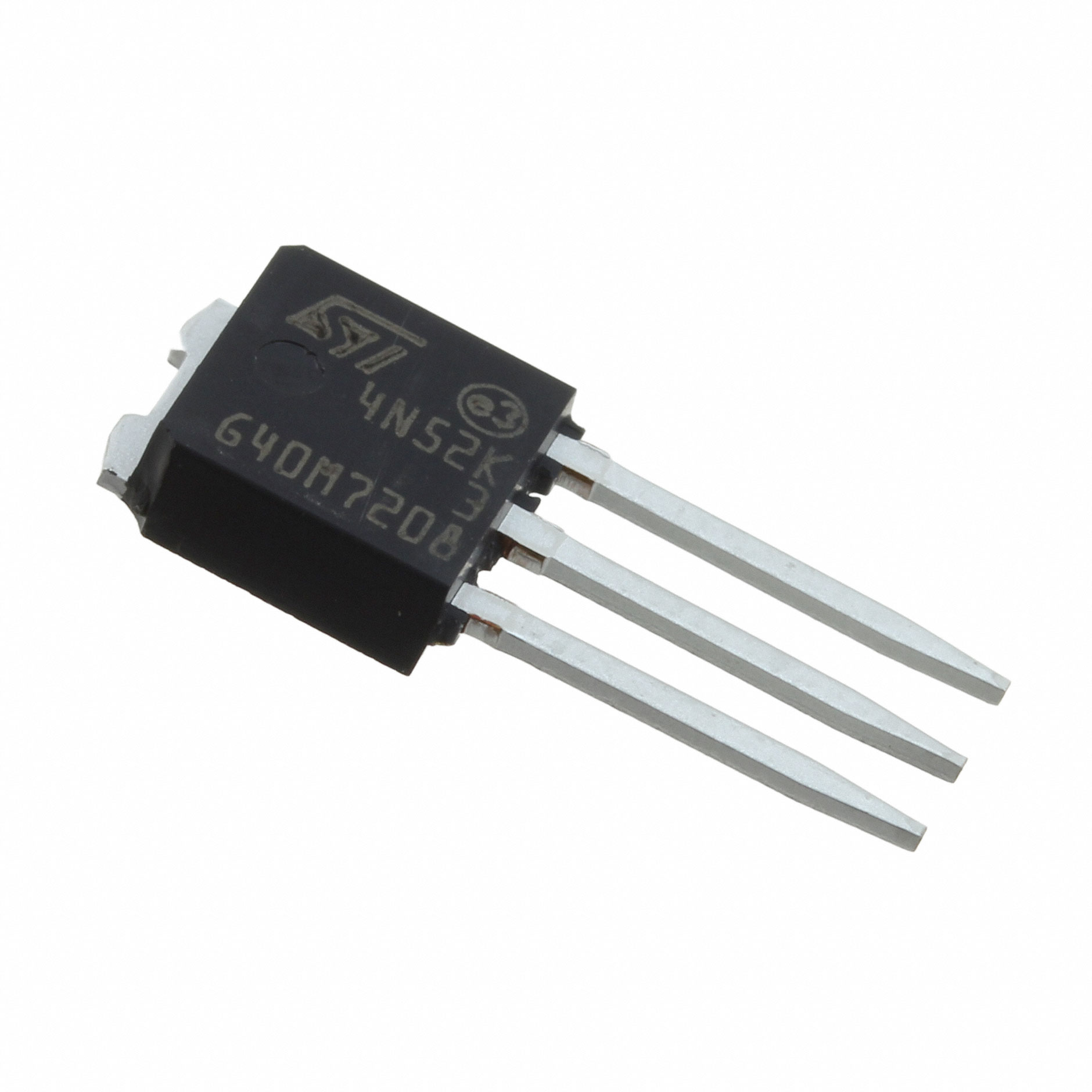

Image is for reference only , See Product Specifications
STD2NK60Z-1
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | STD2NK60Z-1 |
| Description: | MOSFET N-CH 600V 1.4A IPAK |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | SuperMESH™ |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Base Part Number | STD2N |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8Ohm @ 700mA, 10V |
| Power Dissipation (Max) | 45W (Tc) |
| Supplier Device Package | I-PAK |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 10V |
| Drain to Source Voltage (Vdss) | 600V |
| Input Capacitance (Ciss) (Max) @ Vds | 170pF @ 25V |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
In Stock 3548 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.09 | $1.07 | $1.05 |
