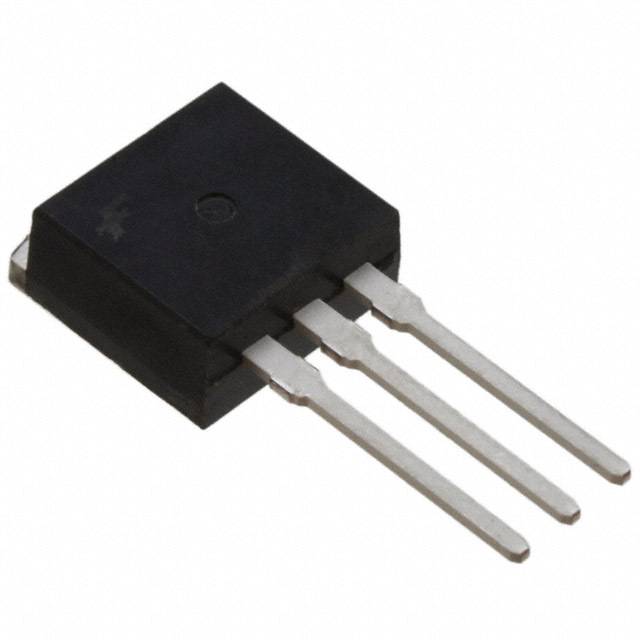

Image is for reference only , See Product Specifications
STB21NM50N-1
| Manufacturers: | STMicroelectronics |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | STB21NM50N-1 |
| Description: | MOSFET N-CH 500V 18A I2PAK |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | MDmesh™ II |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±25V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 9A, 10V |
| Power Dissipation (Max) | 140W (Tc) |
| Supplier Device Package | I2PAK |
| Gate Charge (Qg) (Max) @ Vgs | 65nC @ 10V |
| Drain to Source Voltage (Vdss) | 500V |
| Input Capacitance (Ciss) (Max) @ Vds | 1950pF @ 25V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
In Stock 874 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.98 | $5.86 | $5.74 |
