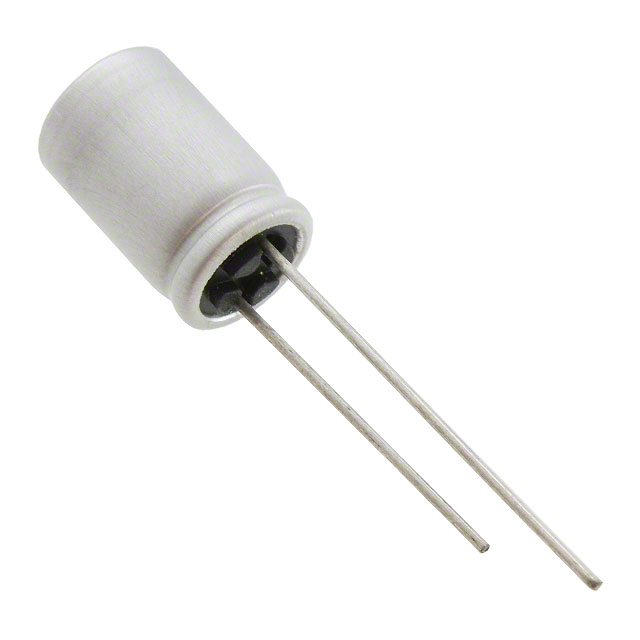

Image is for reference only , See Product Specifications
50PFV100M10X10.5
| Manufacturers: | Rubycon |
|---|---|
| Product Category: | Aluminum - Polymer Capacitors |
| Data Sheet: | 50PFV100M10X10.5 |
| Description: | CAP POLY HYB 100UF 20% 50V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Rubycon |
| Product Category | Aluminum - Polymer Capacitors |
| Type | Hybrid |
| Series | PFV |
| Ratings | AEC-Q200 |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 100µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 50V |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Operating Temperature | -55°C ~ 125°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Ripple Current @ Low Frequency | 80mA @ 120Hz |
| Ripple Current @ High Frequency | 1.6A @ 100kHz |
| ESR (Equivalent Series Resistance) | 28mOhm |
In Stock 1156 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
