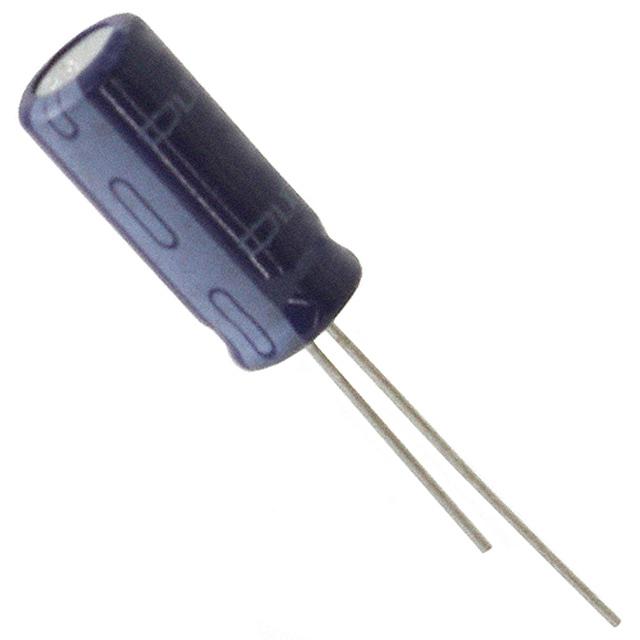

Image is for reference only , See Product Specifications
450BXF15M16X16
| Manufacturers: | Rubycon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | 450BXF15M16X16 |
| Description: | CAP ALUM 15UF 20% 450V RADIAL |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Rubycon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | BXF |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 15µF |
| Part Status | Not For New Designs |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 450V |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Operating Temperature | -25°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 210mA @ 120Hz |
| Ripple Current @ High Frequency | 700mA @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 1153 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $1.35 | $1.32 | $1.30 |
Request Quote
