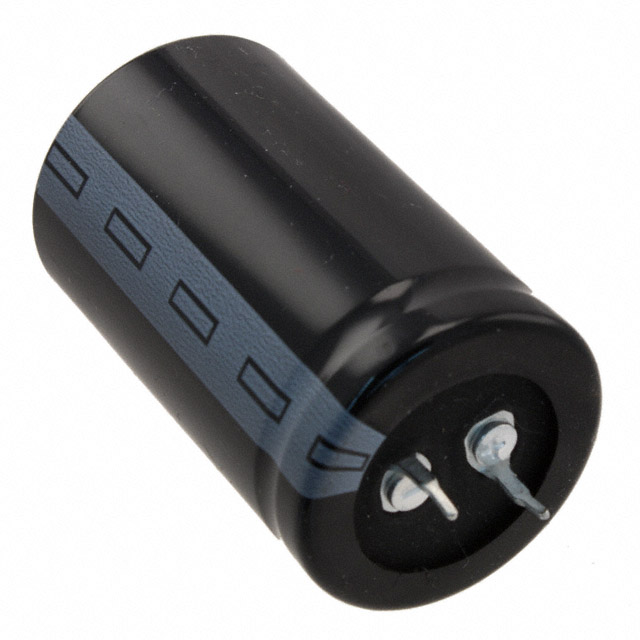

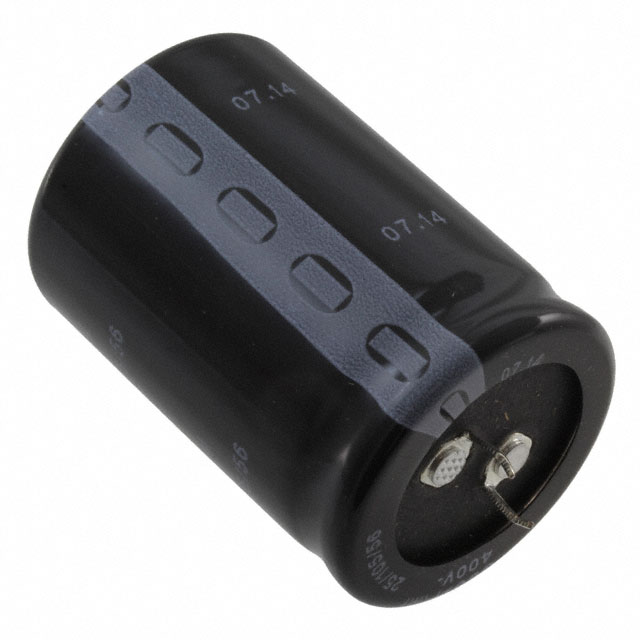

Image is for reference only , See Product Specifications
400MXG680MEFCSN30X55
| Manufacturers: | Rubycon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | 400MXG680MEFCSN30X55 |
| Description: | CAP ALUM 680UF 20% 400V SNAP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Rubycon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | MXG |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 680µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 400V |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Operating Temperature | -25°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 2.5A @ 120Hz |
| Ripple Current @ High Frequency | 3.5A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 160 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $9.75 | $9.56 | $9.36 |
