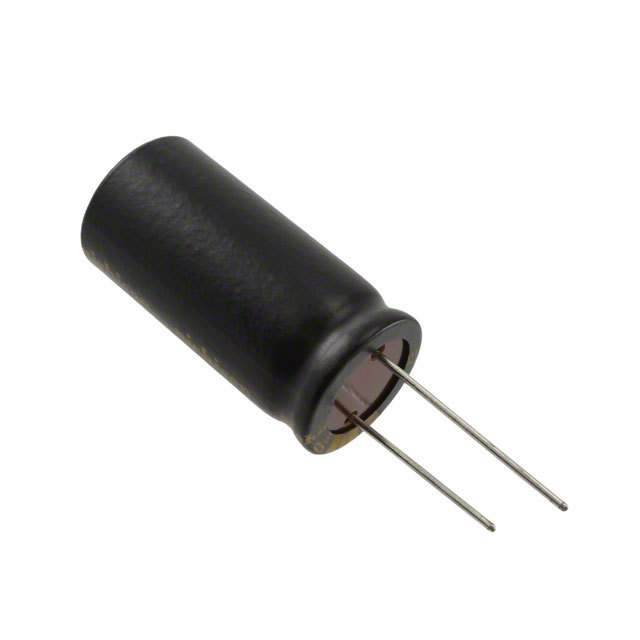

Image is for reference only , See Product Specifications
180MXG560MEFCSN25X25
| Manufacturers: | Rubycon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | 180MXG560MEFCSN25X25 |
| Description: | CAP ALUM 560UF 20% 180V SNAP |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Rubycon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | MXG |
| Ratings | - |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 560µF |
| Part Status | Active |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Voltage - Rated | 180V |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Operating Temperature | -25°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 1.59A @ 120Hz |
| Ripple Current @ High Frequency | 2.385A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.71 | $2.66 | $2.60 |
