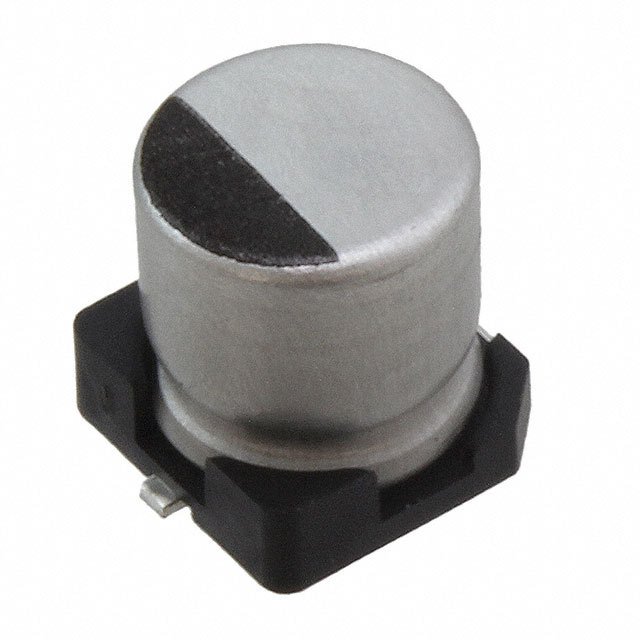

Image is for reference only , See Product Specifications
16TZV22M4X6.1
| Manufacturers: | Rubycon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | 16TZV22M4X6.1 |
| Description: | CAP ALUM 22UF 20% 16V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Rubycon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | TZV |
| Ratings | AEC-Q200 |
| Impedance | 1.35 Ohms |
| Packaging | Digi-Reel® |
| Tolerance | ±20% |
| Capacitance | 22µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 16V |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Operating Temperature | -55°C ~ 105°C |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Ripple Current @ Low Frequency | 28.8mA @ 120Hz |
| Ripple Current @ High Frequency | 90mA @ 100kHz |
| ESR (Equivalent Series Resistance) | - |
