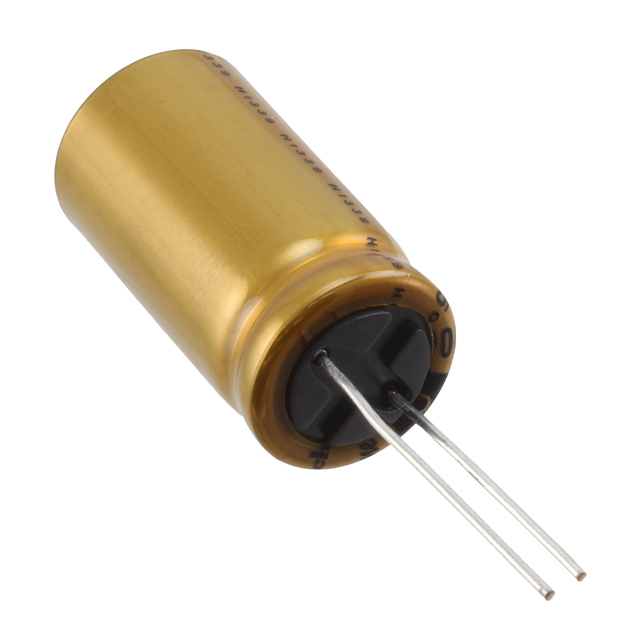

Image is for reference only , See Product Specifications
10SEV4700M16X21.5
| Manufacturers: | Rubycon |
|---|---|
| Product Category: | Aluminum Electrolytic Capacitors |
| Data Sheet: | 10SEV4700M16X21.5 |
| Description: | CAP ALUM 4700UF 20% 10V SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Rubycon |
| Product Category | Aluminum Electrolytic Capacitors |
| Series | SEV |
| Ratings | AEC-Q200 |
| Packaging | Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 4700µF |
| Part Status | Active |
| Applications | Automotive |
| Lead Spacing | - |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Voltage - Rated | 10V |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Ripple Current @ Low Frequency | 1.5A @ 120Hz |
| Ripple Current @ High Frequency | 1.725A @ 10kHz |
| ESR (Equivalent Series Resistance) | - |
In Stock 140 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.43 | $2.38 | $2.33 |
