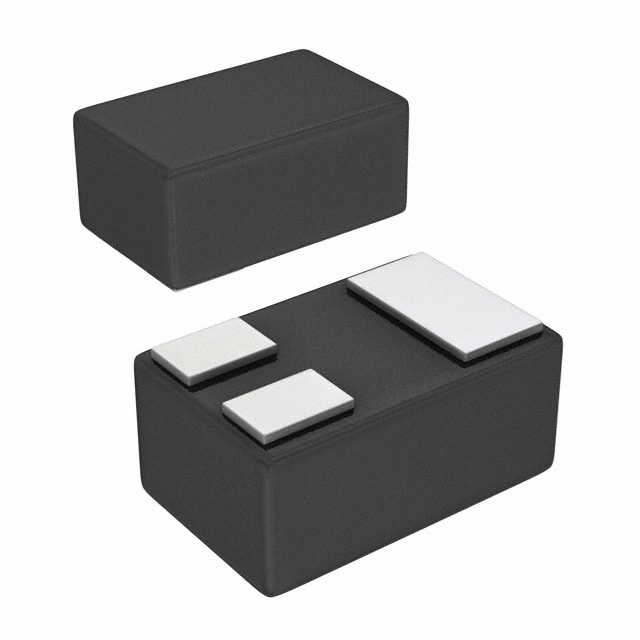

Image is for reference only , See Product Specifications
RT1C060UNTR
| Manufacturers: | ROHM Semiconductor |
|---|---|
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Data Sheet: | RT1C060UNTR |
| Description: | MOSFET N-CH 20V 6A TSST8 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ROHM Semiconductor |
| Product Category | Transistors - FETs, MOSFETs - Single |
| Series | - |
| FET Type | N-Channel |
| Packaging | Digi-Reel® |
| Vgs (Max) | ±10V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Part Status | Not For New Designs |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Flat Lead |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 6A, 4.5V |
| Power Dissipation (Max) | 650mW (Ta) |
| Supplier Device Package | 8-TSST |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 870pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
In Stock 2625 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
