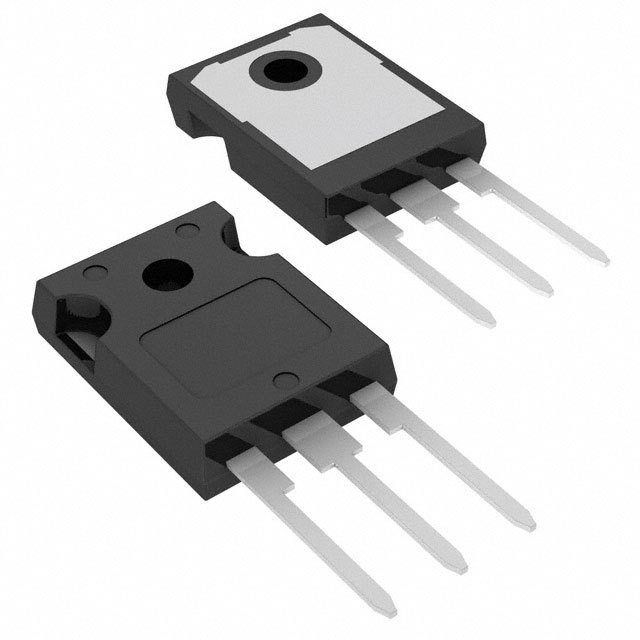

Image is for reference only , See Product Specifications
RGS80TS65HRC11
| Manufacturers: | ROHM Semiconductor |
|---|---|
| Product Category: | Transistors - IGBTs - Single |
| Data Sheet: | RGS80TS65HRC11 |
| Description: | 650V 40A FIELD STOP TRENCH IGBT. |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ROHM Semiconductor |
| Product Category | Transistors - IGBTs - Single |
| Series | - |
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Gate Charge | 48nC |
| Part Status | Active |
| Power - Max | 272W |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Test Condition | 400V, 40A, 10Ohm, 15V |
| Switching Energy | 1.05mJ (on), 1.03mJ (off) |
| Td (on/off) @ 25°C | 37ns/112ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Supplier Device Package | TO-247N |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 40A |
| Current - Collector (Ic) (Max) | 73A |
| Current - Collector Pulsed (Icm) | 120A |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
In Stock 450 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $5.73 | $5.62 | $5.50 |
