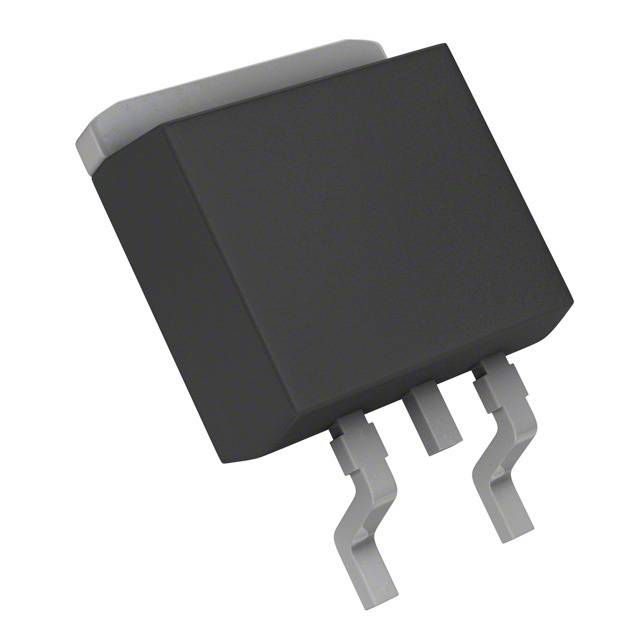

Image is for reference only , See Product Specifications
2SB1181TLP
| Manufacturers: | ROHM Semiconductor |
|---|---|
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Data Sheet: | 2SB1181TLP |
| Description: | TRANS PNP 80V 1A SOT-428 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ROHM Semiconductor |
| Product Category | Transistors - Bipolar (BJT) - Single |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Power - Max | 1W |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Transistor Type | PNP |
| Base Part Number | 2SB1181 |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 100MHz |
| Supplier Device Package | CPT3 |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 50mA, 500mA |
| Current - Collector (Ic) (Max) | 1A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 82 @ 100mA, 3V |
| Voltage - Collector Emitter Breakdown (Max) | 80V |
In Stock 0 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.31 | $0.30 | $0.30 |
