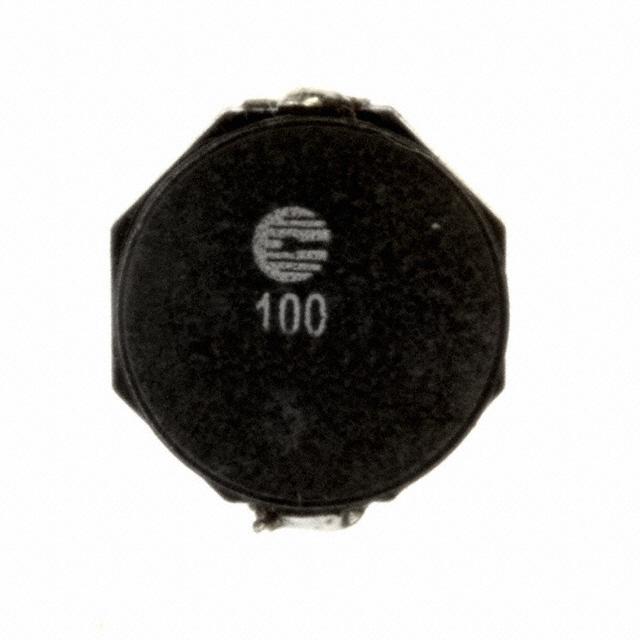

Image is for reference only , See Product Specifications
PM2207.102NLT
| Manufacturers: | Pulse Electronics Power |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | PM2207.102NLT |
| Description: | FIXED IND 1UH 21.8A 5MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Product Category | Fixed Inductors |
| Type | - |
| Series | PM2207.XXXNLT |
| Ratings | AEC-Q200 |
| Features | - |
| Q @ Freq | - |
| Packaging | Digi-Reel® |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Inductance | 1µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | - |
| Size / Dimension | 0.307" L x 0.299" W (7.80mm x 7.60mm) |
| DC Resistance (DCR) | 4.55mOhm Max |
| Current - Saturation | 30A |
| Current Rating (Amps) | 21.8A |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Operating Temperature | -55°C ~ 155°C |
| Supplier Device Package | SMD |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100kHz |
In Stock 1497 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $0.00 | $0.00 | $0.00 |
