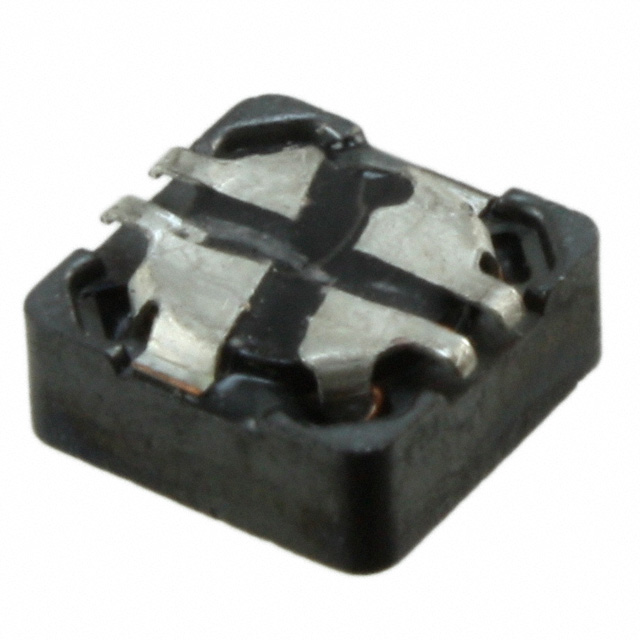

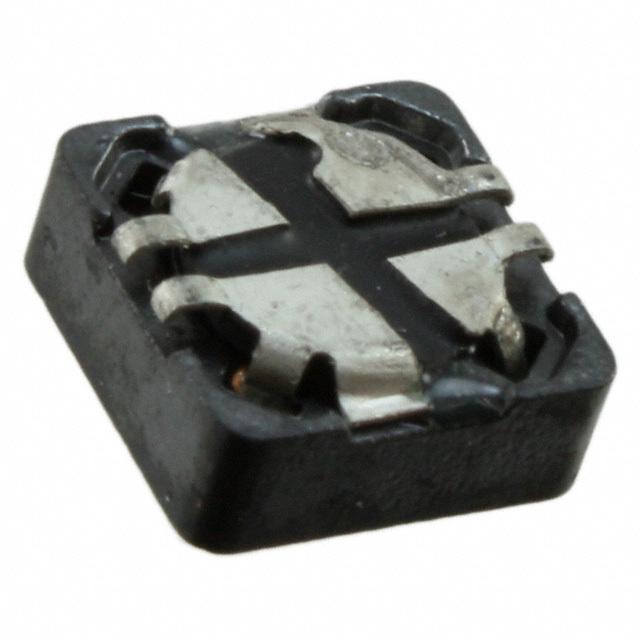

Image is for reference only , See Product Specifications
PF0553.333NL
| Manufacturers: | Pulse Electronics Power |
|---|---|
| Product Category: | Arrays, Signal Transformers |
| Data Sheet: | PF0553.333NL |
| Description: | INDUCT ARRAY 2 COIL 34UH SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Product Category | Arrays, Signal Transformers |
| Height | 0.343" (8.71mm) |
| Series | PF0553NL |
| Ratings | - |
| Packaging | Tray |
| Shielding | Shielded |
| Tolerance | ±20% |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Series | 1.6A |
| Current Rating - Parallel | 3.2A |
| Current Saturation - Series | 3.1A |
| DC Resistance (DCR) - Series | 240mOhm Max |
| Current Saturation - Parallel | 6.2A |
| DC Resistance (DCR) - Parallel | 59mOhm Max |
| Inductance - Connected In Series | 135µH |
| Inductance - Connected In Parallel | 34µH |
In Stock 1490 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $2.02 | $1.98 | $1.94 |
