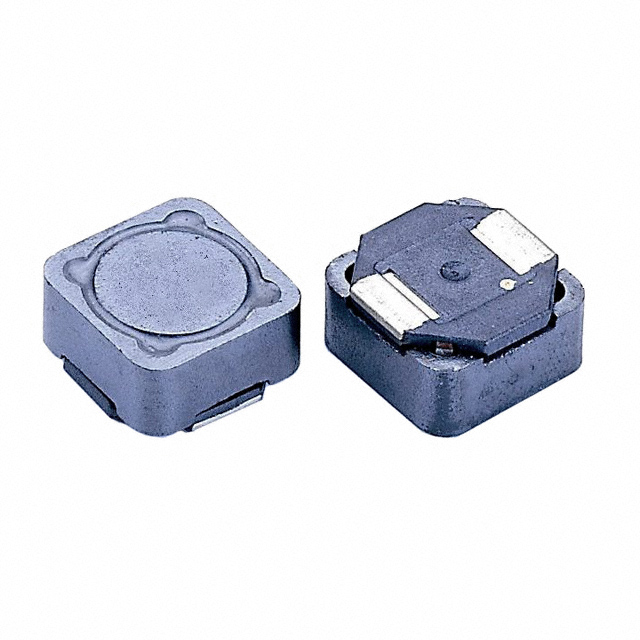

Image is for reference only , See Product Specifications
PA4302.102NLT
| Manufacturers: | Pulse Electronics Power |
|---|---|
| Product Category: | Fixed Inductors |
| Data Sheet: | PA4302.102NLT |
| Description: | FIXED IND 1UH 7.5A 20 MOHM SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Product Category | Fixed Inductors |
| Type | Wirewound |
| Series | PA4302.XXXNLT |
| Ratings | - |
| Features | - |
| Q @ Freq | - |
| Packaging | Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 1µH |
| Part Status | Discontinued at Digi-Key |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
| DC Resistance (DCR) | 20mOhm Max |
| Current - Saturation | - |
| Current Rating (Amps) | 7.5A |
| Height - Seated (Max) | 0.220" (5.60mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | - |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 100kHz |
