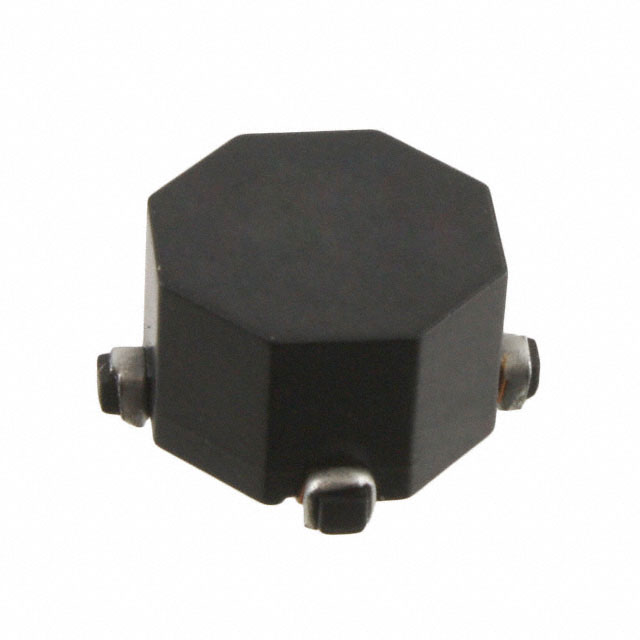

Image is for reference only , See Product Specifications
P0597NL
| Manufacturers: | Pulse Electronics Power |
|---|---|
| Product Category: | Arrays, Signal Transformers |
| Data Sheet: | P0597NL |
| Description: | INDUCT ARRAY 2 COIL 5.7UH SMD |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Pulse Electronics Power |
| Product Category | Arrays, Signal Transformers |
| Height | 0.500" (12.70mm) |
| Series | HCCI-80 |
| Ratings | - |
| Packaging | Tube |
| Shielding | Unshielded |
| Tolerance | ±15% |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 1.220" L x 1.000" W (30.99mm x 25.40mm) |
| Operating Temperature | -40°C ~ 130°C |
| Current Rating - Series | 13.5A |
| Current Rating - Parallel | 27A |
| DC Resistance (DCR) - Series | 10.1mOhm Max |
| DC Resistance (DCR) - Parallel | 2.5mOhm Max |
| Inductance - Connected In Series | 22.8µH |
| Inductance - Connected In Parallel | 5.7µH |
In Stock 572 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.95 | $4.85 | $4.75 |
