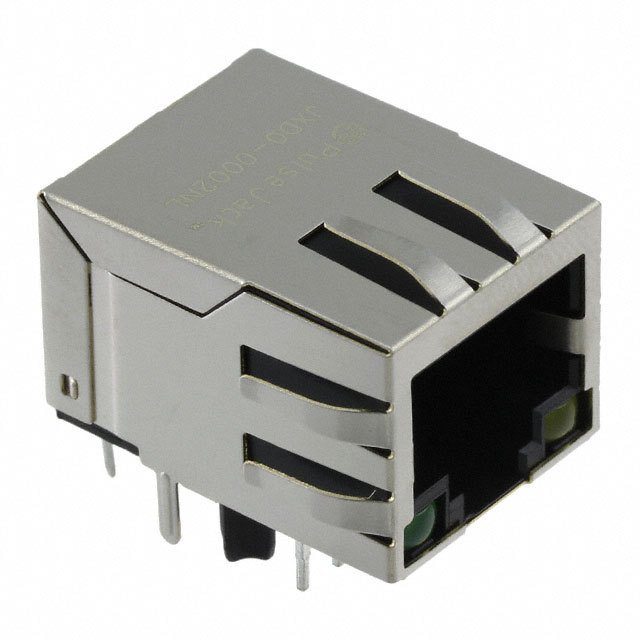

Image is for reference only , See Product Specifications
JXD3-0001NL
| Manufacturers: | Pulse Electronics Network |
|---|---|
| Product Category: | Modular Connectors - Jacks With Magnetics |
| Data Sheet: | JXD3-0001NL |
| Description: | CONN MAGJACK 1PORT 1000BASE-T |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Pulse Electronics Network |
| Product Category | Modular Connectors - Jacks With Magnetics |
| Series | PULSEJACK™ JXD3 |
| Features | Board Lock |
| LED Color | Does Not Contain LED |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | Vertical |
| Part Status | Active |
| Termination | Solder |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Tab Direction | User Selectable |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Shield Material | Brass |
| Contact Material | Phosphor Bronze |
| Height Above Board | 0.664" (16.87mm) |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Cores per Jack | 8 |
In Stock 1336 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.22 | $7.08 | $6.93 |
