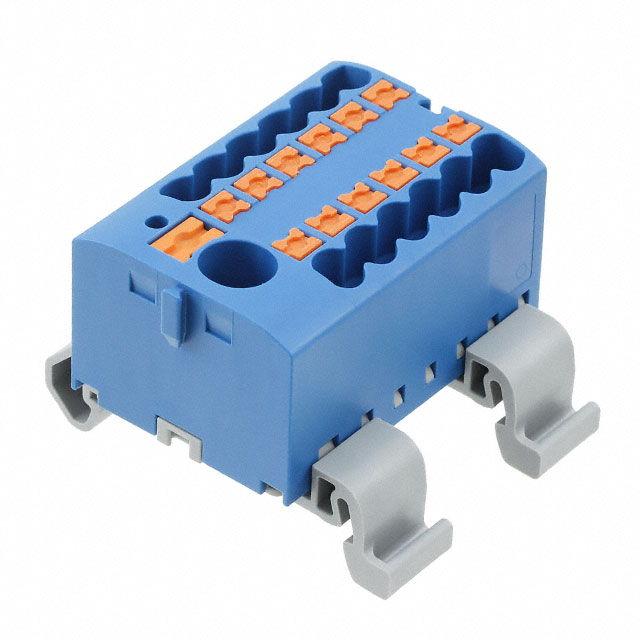

Image is for reference only , See Product Specifications
3273924
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Specialized |
| Data Sheet: | 3273924 |
| Description: | DISTRIBUTION BLOCK BLUE |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Specialized |
| Type | Middle |
| Length | 1.126" (28.60mm) |
| Series | CLIPLINE PTFIX |
| Features | - |
| Part Status | Active |
| Current - UL | 32A |
| Height (Max) | 0.894" (22.70mm) |
| Voltage - UL | 600V |
| Current - IEC | 32A |
| Housing Color | Blue |
| Mounting Type | Direct Mount |
| Voltage - IEC | 450V |
| Number of Levels | 3 |
| Stripping Length | 10mm ~ 12mm |
| Terminal - Width | 18.5mm |
| Termination Style | Push In, Spring |
| Number of Positions | 6 |
| Material - Insulation | Polyamide (PA), Nylon |
| Operating Temperature | - |
| Wire Gauge or Range - AWG | 10-24 AWG |
| Wire Gauge or Range - mm² | 0.2-6mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 50 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $6.30 | $6.17 | $6.05 |
