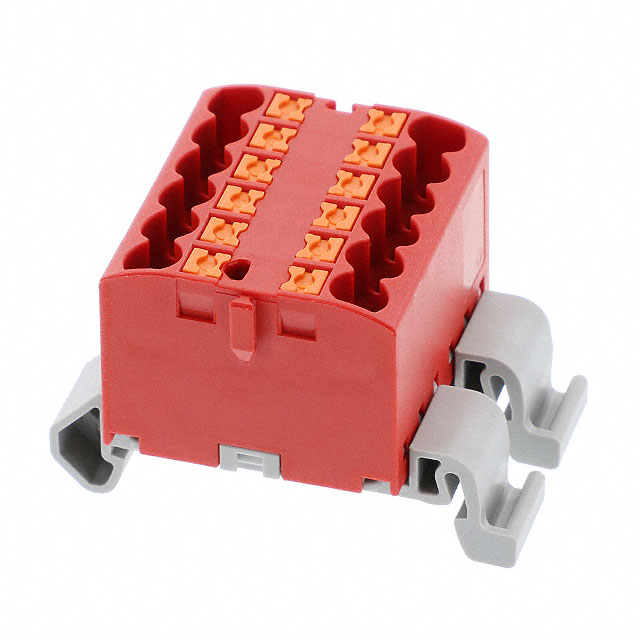

Image is for reference only , See Product Specifications
3273794
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Specialized |
| Data Sheet: | 3273794 |
| Description: | DISTRIBUTION BLOCK RED |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Specialized |
| Type | Middle |
| Length | 1.126" (28.60mm) |
| Series | CLIPLINE PTFIX |
| Features | - |
| Part Status | Active |
| Current - UL | 32A |
| Height (Max) | 0.854" (21.70mm) |
| Voltage - UL | 600V |
| Current - IEC | 32A |
| Housing Color | Red |
| Mounting Type | Direct Mount |
| Voltage - IEC | 630V |
| Number of Levels | 3 |
| Stripping Length | 10mm ~ 12mm |
| Terminal - Width | 18.5mm |
| Termination Style | Push In, Spring |
| Number of Positions | 6 |
| Material - Insulation | Polyamide (PA), Nylon |
| Operating Temperature | -60°C ~ 130°C |
| Wire Gauge or Range - AWG | 10-24 AWG |
| Wire Gauge or Range - mm² | 0.2-6mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 20 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $4.86 | $4.76 | $4.67 |
