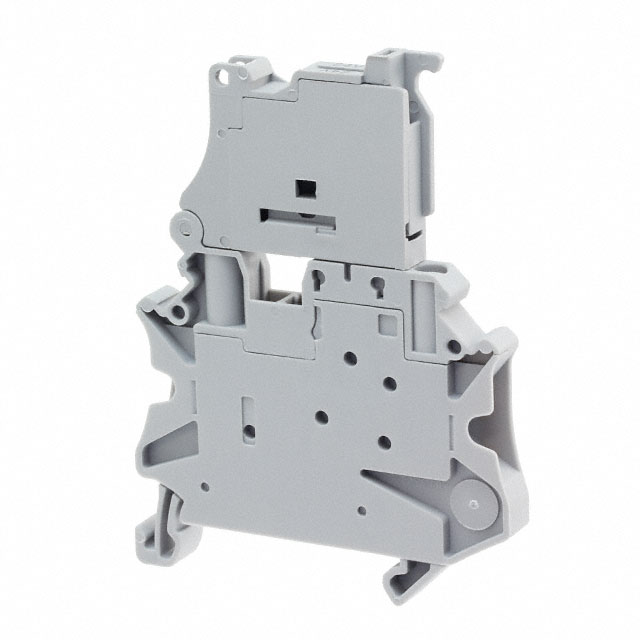

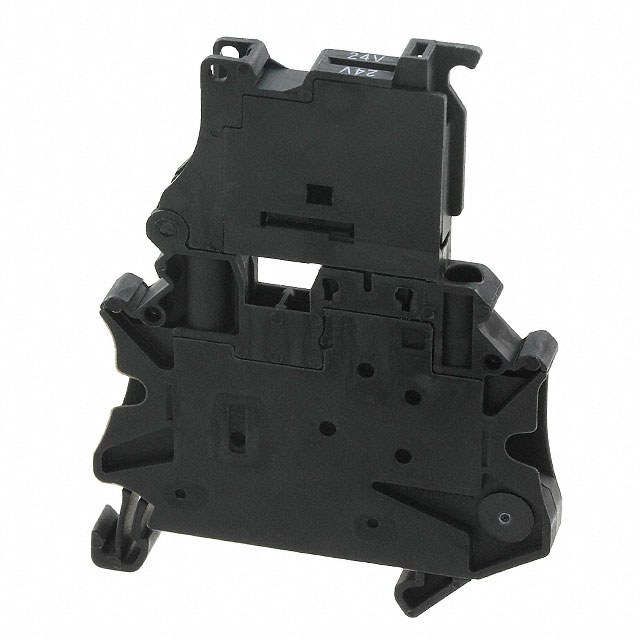

Image is for reference only , See Product Specifications
3214367
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Din Rail, Channel |
| Data Sheet: | 3214367 |
| Description: | CONN TERM BLK DISCONN 10-26AWG |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Din Rail, Channel |
| Type | Disconnect, Feed Through, Isolated |
| Color | Black |
| Series | CLIPLINE UT |
| Features | LED |
| Fuse Type | 5mm x 20mm |
| Part Status | Active |
| Current - UL | 16A |
| Voltage - UL | 300V |
| Voltage - IEC | - |
| Disconnect Type | Fuse, Lever |
| Number of Levels | 3; 1 Grounded |
| Stripping Length | 9mm |
| Terminal - Width | 6.2mm |
| Termination Style | Screw |
| Number of Positions | 5 |
| Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Wire Gauge or Range - mm² | 0.14-4mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 49 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $13.67 | $13.40 | $13.13 |
