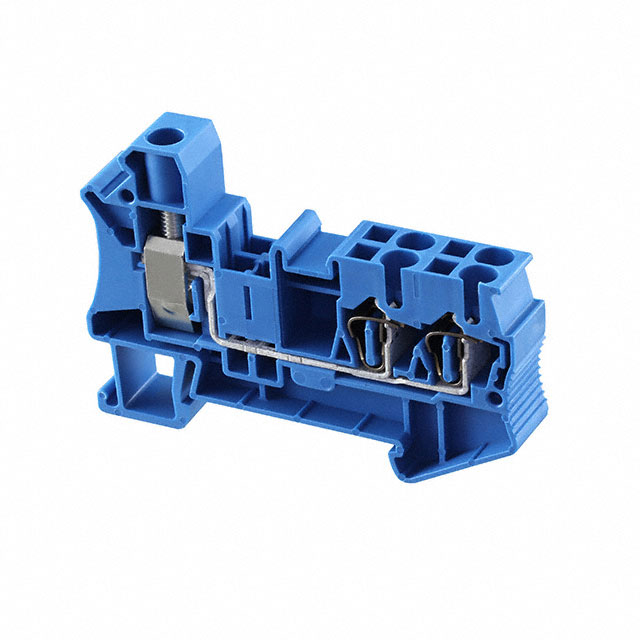

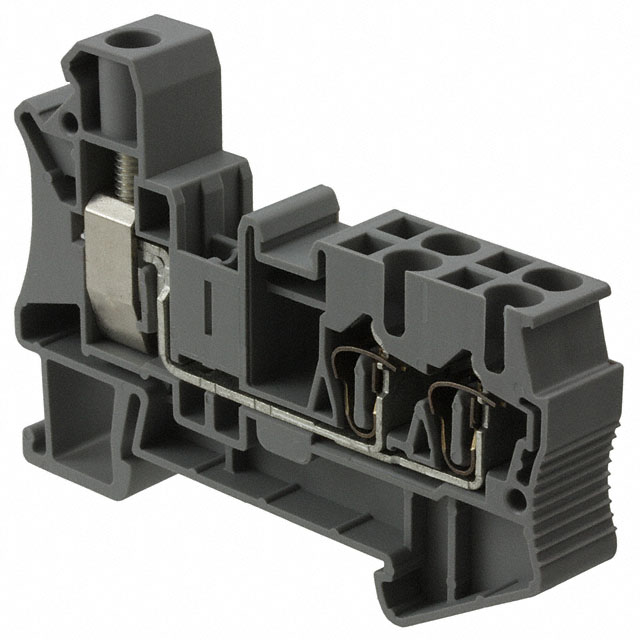

Image is for reference only , See Product Specifications
3210253
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Din Rail, Channel |
| Data Sheet: | 3210253 |
| Description: | CONN TERM BLK FEED THRU 12-26AWG |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Din Rail, Channel |
| Type | Feed Through |
| Color | Gray |
| Series | CLIPLINE PT |
| Features | Diode |
| Fuse Type | - |
| Part Status | Active |
| Current - UL | 20A |
| Voltage - UL | 300V |
| Current - IEC | 0.5A |
| Voltage - IEC | 800V |
| Disconnect Type | - |
| Number of Levels | 1 |
| Stripping Length | 10mm |
| Terminal - Width | 5.2mm |
| Termination Style | Push In, Spring |
| Number of Positions | 3 |
| Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.14-4mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 100 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $7.68 | $7.53 | $7.38 |
