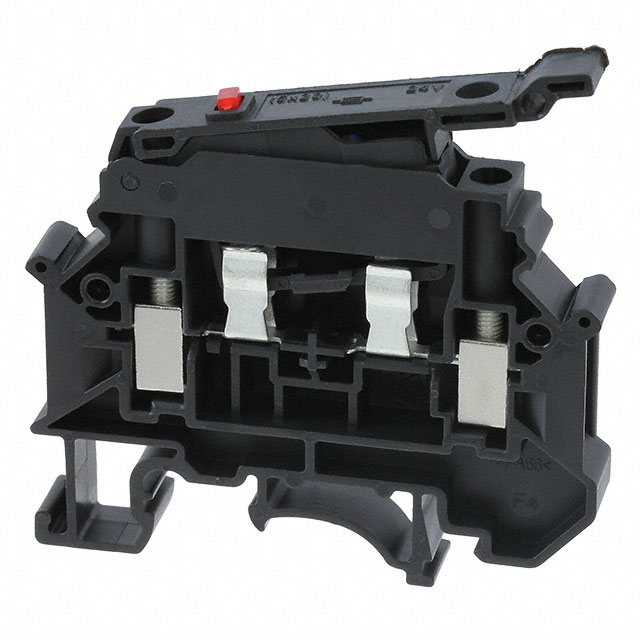

Image is for reference only , See Product Specifications
3100063
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Terminal Blocks - Din Rail, Channel |
| Data Sheet: | 3100063 |
| Description: | CONN TERM BLK FEED THRU 12-28AWG |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Terminal Blocks - Din Rail, Channel |
| Type | Feed Through |
| Color | Gray |
| Series | CLIPLINE MTKD |
| Features | Thermocouple |
| Fuse Type | - |
| Part Status | Active |
| Current - UL | 10A |
| Voltage - UL | 300V |
| Current - IEC | 1A |
| Voltage - IEC | 400V |
| Disconnect Type | - |
| Number of Levels | 2 |
| Stripping Length | 7mm |
| Terminal - Width | 10.4mm |
| Termination Style | Screw |
| Number of Positions | 4 |
| Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.2-4mm² |
| Material Flammability Rating | UL94 V-0 |
In Stock 84 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $19.26 | $18.87 | $18.50 |
