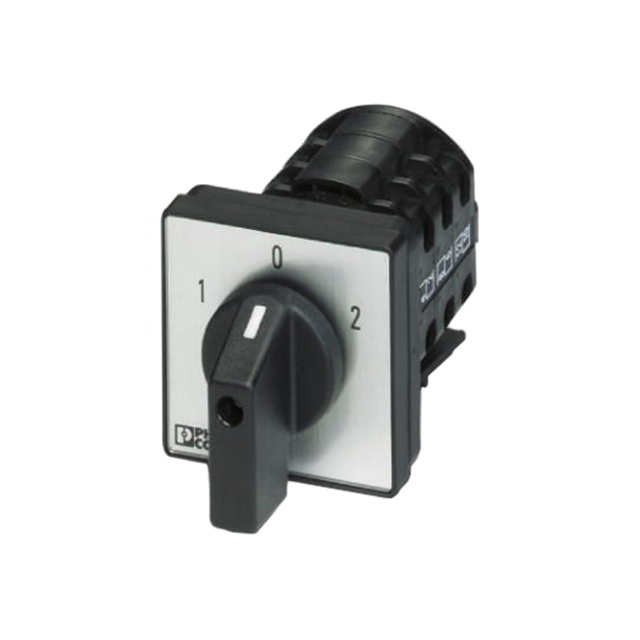

Image is for reference only , See Product Specifications
3069718
| Manufacturers: | Phoenix Contact |
|---|---|
| Product Category: | Selector Switches |
| Data Sheet: | 3069718 |
| Description: | RS20-US-S0250-0303-014H-001 |
| RoHS status: | RoHS Compliant |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product Category | Selector Switches |
| Type | Standard |
| Series | - |
| Circuit | SP3T |
| Features | Marking: 1-2-3 |
| Approvals | cUL, cULus, EAC, UL |
| Part Status | Obsolete |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Electrical Life | - |
| Mechanical Life | - |
| Switch Function | On-On-On |
| Termination Style | Screw Terminal |
| Ingress Protection | - |
| Depth Behind Flange | 52.50mm |
| Number of Positions | 3 |
| Voltage Rating - AC | 300V |
| Current Rating (Amps) | 20A (AC) |
| Operating Temperature | -35°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 15.00mm Dia |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
In Stock 1 pcs
| Refrence Price ($) | 1 pcs | 100 pcs | 500 pcs |
|---|---|---|---|
| $71.85 | $70.41 | $69.00 |
